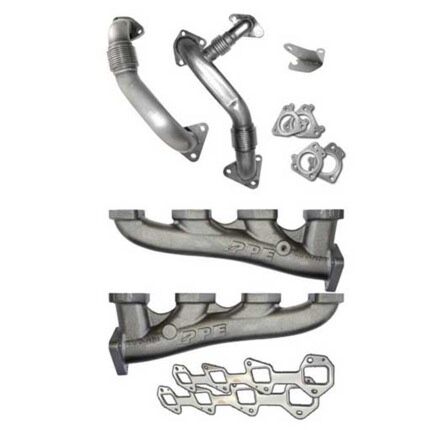

PPE 116111000 2001-2004 (FED / 2001 CA) GM 6.6L Duramax High-Flow Exhaust Manifold and Up-Pipe Kit
Special Price$1,121.39Regular Price$1,145.99
In stock
SKU:
116111200
Special Price$1,121.39Regular Price$1,145.99
Replacing your stock Manifold and Up-Pipes should be your first step in building a high performance exhaust system. These exhaust manifolds were co-designed by Honeywell (Garrett) and PPE using CAD software to maximize flow characteristics. The up-pi...
2002-2004 (CA LB7) GM 6.6L Duramax High-Flow Exhaust Manifold and Up-Pipe Kit
High-Flow Exhaust Manifold and Up-Pipe Kit for 2002-2004 (CA LB7) GM 6.6L Duramax
PPE High-Flow Manifold is made from high-sil moly cast iron. The PPE Up-Pipe bellows are internally sleeved, made from aircraft-grade 304 stainless steel, and designed with increased inner diameter for higher flow. The entire Manifold and Up-Pipe exhaust system are designed to maximize power and flow characteristics, lower exhaust gas temperatures (EGTs) and accelerate turbo spool-up while increasing power, fuel economy, and maintaining reliability.
High-Flow Exhaust Manifold
Ceramic coating is available as an option for High-Flow Exhaust Manifold.
Ceramic coating was pioneered by the military and defense industries. Now considered a standard in high-performance applications like Formula 1 and military jet aircraft. This same process is available to you - today.
The Ceramic-Coating option enhances the existing benefits of the PPE Manifold and Up-Pipe Kit which is specifically designed to maximize power and flow characteristics. Ceramic coating creates a thermal barrier and doesn’t absorb heat as quickly as raw metal. This reduces the thermal cycle and surface temperature. The ceramic coating promotes even greater flow, which means lower exhaust gas temperatures (EGTs). Ceramic coating also offers long-lasting protection against moisture, road salts, oil, fuel, and other corrosive chemicals. Plus, ceramic coating keeps your PPE Manifold looking great for a long, long time.
304 Stainless Steel Up-Pipe Kit
Choose the Ceramic Coating Option added to your PPE Manifold and upgrade your GM 6.6L Duramax with the superior combination of PPE Manifold with 304 Stainless Steel Up-Pipe Kit.
Note:
PPE LB7 Down Pipe is required for the installation of this kit. The stock down pipe is not compatible with this kit. Complete your upgrade with a PPE 3-Inch 304 Stainless Steel Down Pipe.
PPE - 116111200 - Features
Significant reduction in exhaust back-pressure
Up-Pipes made from stainless steel 11-gauge .120-inch wall, with a 2-inch outside diameter
Cast hi-sil moly iron high-flow manifold construction
Built in bosses, pre-drilled and tapped 1/8” NPT for EGT gauge sensor
Up-Pipes have free-flowing stainless steel inner liner bellows
PPE - 116111200 - Vehicle Fitment
YEAR
MAKE - ENGINE SERIES
2002
Chevy 6.6L LB7 Duramax
2003
Chevy 6.6L LB7 Duramax
2004
Chevy 6.6L LB7 Duramax
2002
GMC 6.6L LB7 Duramax
2003
GMC 6.6L LB7 Duramax
2004
GMC 6.6L LB7 Duramax
PPE - 116111200 - Specifications
Manufacturer Part Number
116111200
Manufacturer Name
Pacific Performance Engineering
GTIN
840171208924
Shipping Weight
43.00 lb.
Shipping Length
17 in.
Shipping Width
23 in.
Shipping Height
12 in.
Fuel Type
Diesel
