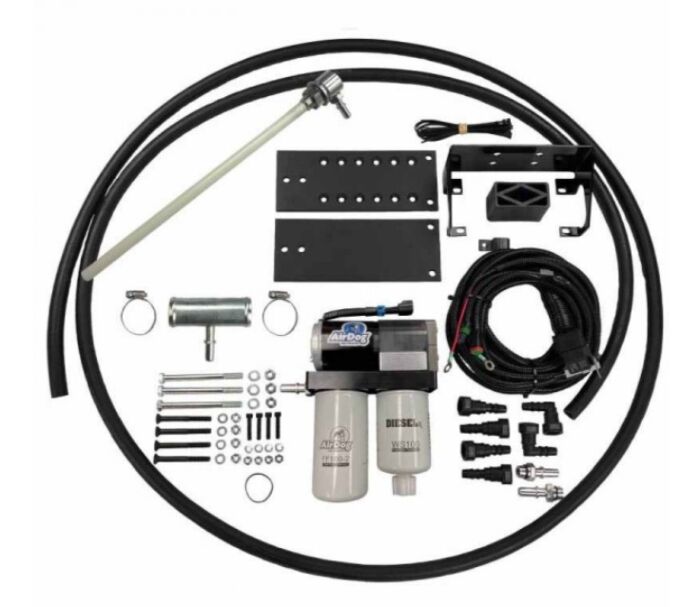

AirDog I FP-150-4G fuel system for the 2001-2010 Chevy/GMC LB7, LLY, LBZ and LMM Duramax 6.6L. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system.A 1/2" draw straw is used to pull fuel from the tank. The supply side is hooked up to the factory fuel line feeding the CP3 injection pump. The return is sent back to the tank through a filler neck tee. This is a 150GPH (Gallon Per Hour) lift pump system.
| Increases Engine Efficiency | Better Engine Performance |
| Lifetime Limited Warranty | All Necessary Wiring, Plumbing, & Installation Hardware Included |
| Improved Throttle Response | Eliminates Air & Water From Fuel |
| 150 GPH Fuel Pump | Incorporates Tried-And-True 4G Motor Design |
| YEAR | MAKE - ENGINE SERIES |
|---|---|
| 2001 | Chevy/GMC - 6.6L LB7 Duramax |
| 2002 | Chevy/GMC - 6.6L LB7 Duramax |
| 2003 | Chevy/GMC - 6.6L LB7 Duramax |
| 2004 | Chevy/GMC - 6.6L LB7 Duramax |
| 2004.5 | Chevy/GMC - 6.6L LLY Duramax |
| 2005 | Chevy/GMC - 6.6L LLY Duramax |
| 2006 | Chevy/GMC - 6.6L LLY/LBZ Duramax |
| 2007 | Chevy/GMC - 6.6L LLY/LBZ Duramax |
| 2007.5 | Chevy/GMC - 6.6L LMM Duramax |
| 2008 | Chevy/GMC - 6.6L LMM Duramax |
| 2009 | Chevy/GMC - 6.6L LMM Duramax |
| 2010 | Chevy/GMC - 6.6L LMM Duramax |
| Manufacturer Part Number | A4SPBC188 |
| GTIN | 813094016884 |
| Manufacturer Name | AirDog by PureFlow |
| Vehicle Fitment | 2001-2010 GM 6.6L Duramax LB7/LLY/LBZ/LMM (Moderate To Extreme) |
| Shipping Weight | 27.00 lb. |
| Shipping Length | 19 in. |
| Shipping Width | 13 in. |
| Shipping Height | 7 in. |
| Fuel Type | Diesel |
| E-Code | 2 |
| EO Number | d-595-5 |
| Warranty Info | Limited Lifetime |
| Prop 65 | WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov |
| Cross Reference # | A4SPBC088, PTA4SPBC088 |
| Internal | L7R5 |
| AirDog A4SPBC188 Installation Manual | Click to View |
This video describes the AirDog閹 lifetime warranty registration process. You have 30 days from the purchase date to fill out the warranty card and send it in. Be sure to keep a copy of a receipt, invoice, or packing slip to prove you are the original purchaser for your records.
| Truck Applications | Chevy/GMC Duramax 2001-04 LB7, Chevy/GMC Duramax 2004.5-05 LLY, Chevy/GMC Duramax 2006-07 LBZ, Chevy/GMC Duramax 2007.5-10 LMM |
|---|---|
| SKU | A4SPBC188 |
| Manufacturer | AirDog |
| Weight | 27.00 |
