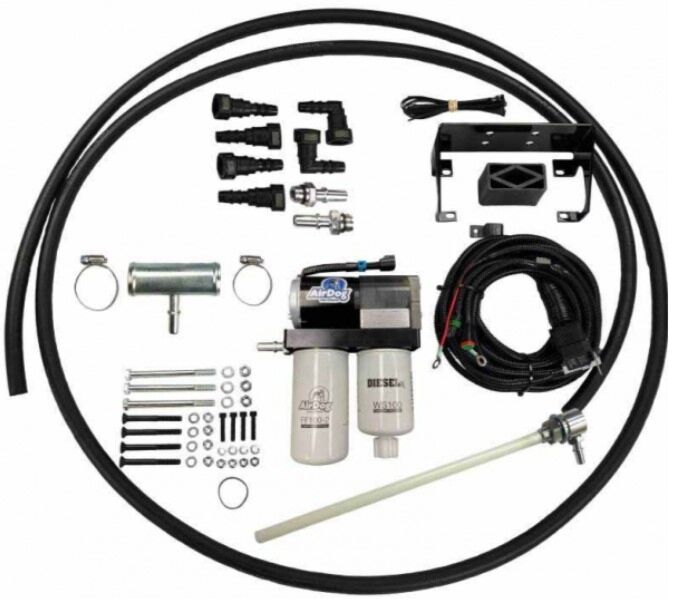

AirDog I FP-150-4G fuel system for the 2015-2016 Chevy/GMC Duramax 6.6L. This diesel lift pump mounts to the frame jig in front of the fuel tank for a clean looking installation. A 1/2" draw straw is used to pull fuel from the tank. The supply side is hooked up to the factory fuel line feeding the CP4 injection pump. The return is sent back to the tank through a filler neck tee. This is a 150GPH (Gallon Per Hour) lift pump system.
| Eliminates Air & Water From Fuel | Optimized Engine Performance |
| Includes Wiring, Plumbing, & Installation Hardware | Increases Overall Engine Efficiency |
| Lifetime Limited Warranty | Incorporates Tried-And-True 4G Motor Design |
| 150 GPH Fuel Pump | Faster Throttle Response |
| YEAR | MAKE - ENGINE SERIES |
|---|---|
| 2015 | Chevy 6.6L LML Duramax |
| 2015 | GMC 6.6L LML Duramax |
| 2016 | Chevy 6.6L LML Duramax |
| 2016 | GMC 6.6L LML Duramax |
| Manufacturer Part Number | A4SPBC191 |
| GTIN | 813094016914 |
| Manufacturer Name | AirDog by PureFlow |
| Vehicle Fitment | 2015-2016 GM 6.6L Duramax LML (Moderate To Extreme) |
| Shipping Weight | 21.00 lb. |
| Shipping Length | 19 in. |
| Shipping Width | 13 in. |
| Shipping Height | 7 in. |
| Fuel Type | Diesel |
| E-Code | 2 |
| EO Number | d-595-5 |
| Warranty Info | Limited Lifetime |
| Prop 65 | WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov |
| Cross Reference # | A4SPBC091 |
| Internal | L0R2 |
| AirDog A4SPBC191 Installation Manual | Click to View |
This video describes the AirDog閹 lifetime warranty registration process. You have 30 days from the purchase date to fill out the warranty card and send it in. Be sure to keep a copy of a receipt, invoice, or packing slip to prove you are the original purchaser for your records.
| Truck Applications | Chevy/GMC Duramax 2011-17 LML/LGH |
|---|---|
| SKU | A4SPBC191 |
| Manufacturer | AirDog |
| Weight | 21.00 |
