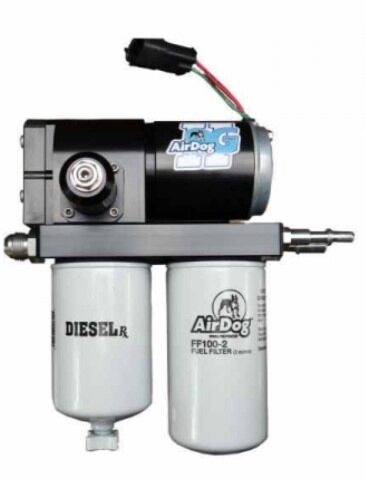

AirDog II-5G DF-100-5G fuel system for the 1992-2000 Chevy/GMC 6.5L Diesel. This fuel system replaces your factory low pressure frame rail mounted pump. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. The suction side of the AirDog hooks up to the factory suction line. The pressure side connects directly to the factory injection pump feed line on the frame. The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This is a 100GPH (Gallon Per Hour) lift pump system.
| Provides Better Fuel Flow At Pressure | Maintains Reliable & Quiet 4G Motor Technology |
| Demand Flow Design | 100 GPH Fuel Pump |
| All Necessary Wiring, Plumbing, & Installation Hardware Included | Integrated Diaphragm Fuel Pressure Regulator |
| Larger Ports Over Previous Pumps | Reduced Aeration From Low Flow Return |
| Offers Increased Engine Efficiency | Lifetime Limited Warranty |
| 12-Gauge Wiring |
| YEAR | MAKE - ENGINE SERIES |
|---|---|
| 1992 | Chevy/GMC - 6.2L Non-Duramax |
| 1993 | Chevy/GMC - 6.2L Non-Duramax |
| 1994 | Chevy/GMC - 6.5L Non-Duramax |
| 1995 | Chevy/GMC - 6.5L Non-Duramax |
| 1996 | Chevy/GMC - 6.5L Non-Duramax |
| 1997 | Chevy/GMC - 6.5L Non-Duramax |
| 1998 | Chevy/GMC - 6.5L Non-Duramax |
| 1999 | Chevy/GMC - 6.5L Non-Duramax |
| 2000 | Chevy/GMC - 6.5L Non-Duramax |
| Manufacturer Part Number | A7SPBC258 |
| GTIN | 813094015580 |
| Manufacturer Name | AirDog by PureFlow |
| Vehicle Fitment | 1992-2000 GM 6.5L (Stock To Moderate) |
| Shipping Weight | 27.00 lb. |
| Shipping Length | 19 in. |
| Shipping Width | 13 in. |
| Shipping Height | 7 in. |
| Fuel Type | Diesel |
| Warranty Info | Limited Lifetime |
| Prop 65 | WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov |
| Cross Reference # | A6SPBC258 |
| Internal | L1R0 |
| AirDog A7SPBC258 Installation Manual | Click to View |
In case you missed us at the shows last season, here is a short video where one of our techs, Brandon, explains how the AirDog閹 II-4G separates air out of diesel fuel and how that benefits you. We are using a calibrated test fluid that has the same viscosity as diesel fuel and the AirDog閹 II-4G is being run at alternator voltage or 13.8V.
This video describes the AirDog閹 lifetime warranty registration process. You have 30 days from the purchase date to fill out the warranty card and send it in. Be sure to keep a copy of a receipt, invoice, or packing slip to prove you are the original purchaser for your records.
Pure diesel fuel is delivered to the injection system.
| Truck Applications | Chevy/GMC 6.2L 1985-93, Chevy/GMC 6.5L 1994-01 |
|---|---|
| SKU | A7SPBC258 |
| Manufacturer | AirDog |
| Weight | 27.00 |
