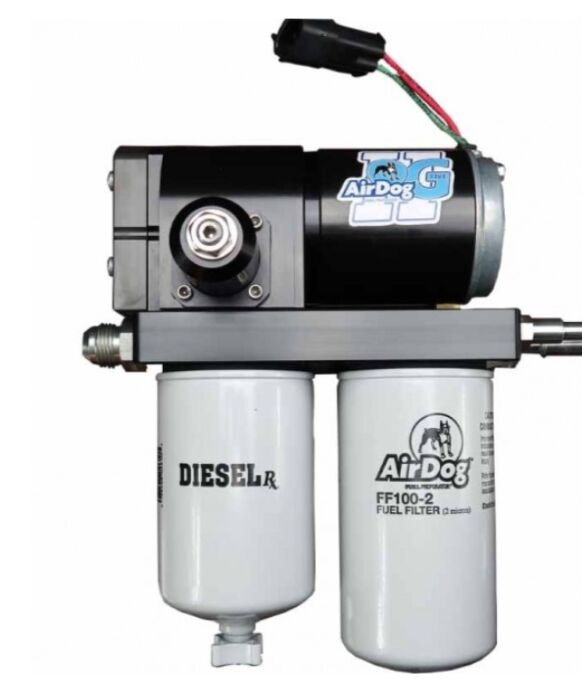

AirDog II-5G DF-220-5G fuel system for the 2008-2010 Ford 6.4L Powerstroke. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. This system uses a 5/8" draw straw to pull fuel from the tank. The pressure side connects to the factory supply line on the frame rail. This fuel pump completely bypasses the factory fuel pump. The AirDog Air/Vapor return is sent back to the tank through a return “Y” that splices the AirDog return into the factory engine return. This is a 220GPH (Gallon Per Hour) lift pump system for highly modified trucks.
| 220 GPH Pump | Diaphragm Fuel Pressure Regulator |
| 4 Bearing Motor with Intermediate Shaft | Demand Flow Design |
| Larger Ports Over Previous Pumps | Reduced Aeration From Low Flow Return |
| YEAR | MAKE - ENGINE SERIES |
|---|---|
| 2008 | Ford - 6.4L Powerstroke |
| 2009 | Ford - 6.4L Powerstroke |
| 2010 | Ford - 6.4L Powerstroke |
| Manufacturer Part Number | A7SABF595 |
| GTIN | 813094015955 |
| Manufacturer Name | AirDog by PureFlow |
| Vehicle Fitment | 2008-2010 Ford 6.4L Powerstroke (Extreme Applications) |
| Shipping Weight | 27.00 lb. |
| Shipping Length | 19 in. |
| Shipping Width | 13 in. |
| Shipping Height | 7 in. |
| Fuel Type | Diesel |
| Warranty Info | Limited Lifetime |
| Prop 65 | WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov |
| Internal | L0R0 |
| AirDog A7SABF595 Installation Manual | Click to View |
This video describes the AirDog閹 lifetime warranty registration process. You have 30 days from the purchase date to fill out the warranty card and send it in. Be sure to keep a copy of a receipt, invoice, or packing slip to prove you are the original purchaser for your records.
Pure diesel fuel is delivered to the injection system.
| Truck Applications | Ford 6.4L 2007.5-10 |
|---|---|
| SKU | A7SABF595 |
| Manufacturer | AirDog |
| Weight | 27.00 |
