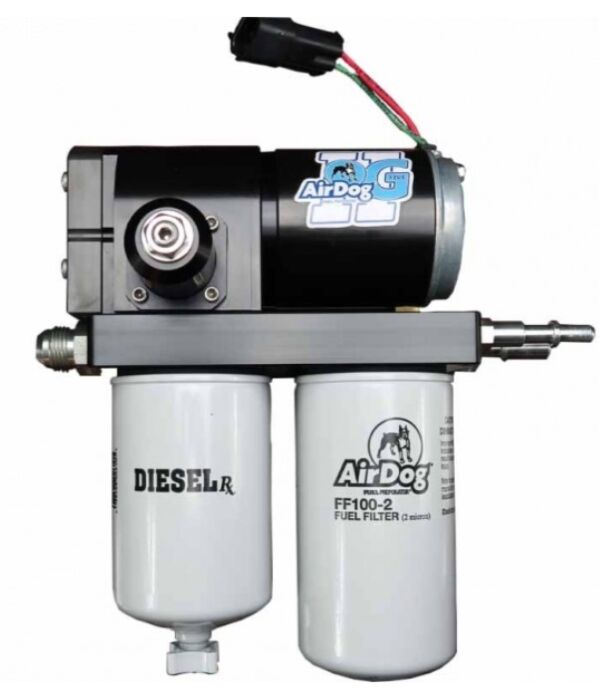

AirDog II-5G DF-220 fuel system for the 1994-1998 Dodge Ram P-Pump 12V Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A draw straw is installed in the fuel tank to supply fuel to the pump. The pressure side connects directly into the side of the P-Pump, bypassing the factory fuel filter housing and block mounted pump. The injection pump return is tied into the engine return to eliminate the need for the factory filter head. The AirDog Air/Vapor return is sent back to the tank through the filler neck return tee. This is a 220GPH (Gallon Per Hour) lift pump system for heavily modified trucks.
| 220 GPH Pump | Diaphragm Fuel Pressure Regulator |
| 4 Bearing Motor with Intermediate Shaft | Demand Flow Design |
| Larger Ports Over Previous Pumps | Reduced Aeration From Low Flow Return |
| YEAR | MAKE - ENGINE SERIES |
|---|---|
| 1994 | Dodge 5.9L 12V CUMMINS |
| 1995 | Dodge 5.9L 12V CUMMINS |
| 1996 | Dodge 5.9L 12V CUMMINS |
| 1997 | Dodge 5.9L 12V CUMMINS |
| 1998 | Dodge 5.9L 12V CUMMINS |
| Manufacturer Part Number | A7SABD527 |
| GTIN | 813094011278 |
| Manufacturer Name | AirDog by PureFlow |
| Vehicle Fitment | 1994-1998 Dodge 5.9L Diesel (Extreme Applications) |
| Shipping Weight | 27.00 lb. |
| Shipping Length | 19 in. |
| Shipping Width | 13 in. |
| Shipping Height | 7 in. |
| Fuel Type | Diesel |
| Warranty Info | Limited Lifetime |
| Prop 65 | WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov |
| Internal | L0R0 |
| AirDog A7SABD527 Installation Manual | Click to View |
This video describes the AirDog閹 lifetime warranty registration process. You have 30 days from the purchase date to fill out the warranty card and send it in. Be sure to keep a copy of a receipt, invoice, or packing slip to prove you are the original purchaser for your records.
Pure diesel fuel is delivered to the injection system.
| Truck Applications | Dodge 12V 1994-98 |
|---|---|
| SKU | A7SABD527 |
| Manufacturer | AirDog |
| Weight | 27.00 |
