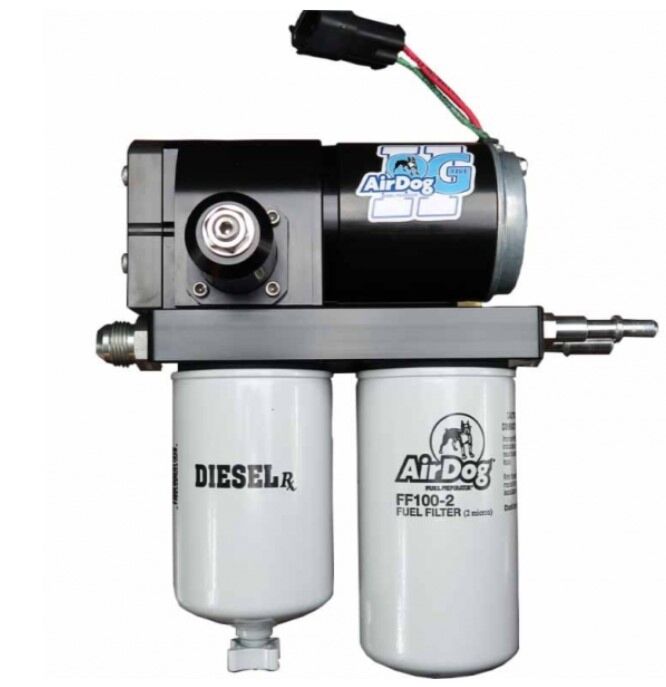

AirDog II-5G DF-220-5G fuel system for the 2015-2016 Chevy Duramax. This diesel lift pump mounts to the factory frame standoff in front of the fuel tank using our cradle bracket. A 5/8in draw straw is installed in the fuel tank to draw fuel to the pump. The pressure side connects directly to the factory 1/2in fuel line on the frame. The AirDog Air/Vapor return is sent back to the tank through the factory 12mm” suction line once the module is modified. This is a 220GPH (Gallon Per Hour) lift pump system for heavily modified trucks (1000 HP and above).
| 220 GPH Pump | Diaphragm Fuel Pressure Regulator |
| 4 Bearing Motor with Intermediate Shaft | Demand Flow Design |
| Larger Ports Over Previous Pumps | Reduced Aeration From Low Flow Return |
| YEAR | MAKE - ENGINE SERIES |
|---|---|
| 2015 | Chevy/GMC - 6.6L LML Duramax |
| 2016 | Chevy/GMC - 6.6L LML Duramax |
| Manufacturer Part Number | A7SABC515 |
| GTIN | 813094010158 |
| Manufacturer Name | AirDog by PureFlow |
| Vehicle Fitment | 2015-2016 GM 6.6L Duramax LML (Extreme Applications) |
| Shipping Weight | 21.00 lb. |
| Shipping Length | 19 in. |
| Shipping Width | 13 in. |
| Shipping Height | 7 in. |
| Fuel Type | Diesel |
| Warranty Info | Limited Lifetime |
| Prop 65 | WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov |
| Internal | L0R0 |
| AirDog A7SABC515 Installation Manual | Click to View |
This video describes the AirDog閹 lifetime warranty registration process. You have 30 days from the purchase date to fill out the warranty card and send it in. Be sure to keep a copy of a receipt, invoice, or packing slip to prove you are the original purchaser for your records.
Pure diesel fuel is delivered to the injection system.
| Truck Applications | Chevy/GMC Duramax 2011-17 LML/LGH |
|---|---|
| SKU | A7SABC515 |
| Manufacturer | AirDog |
| Weight | 21.00 |
