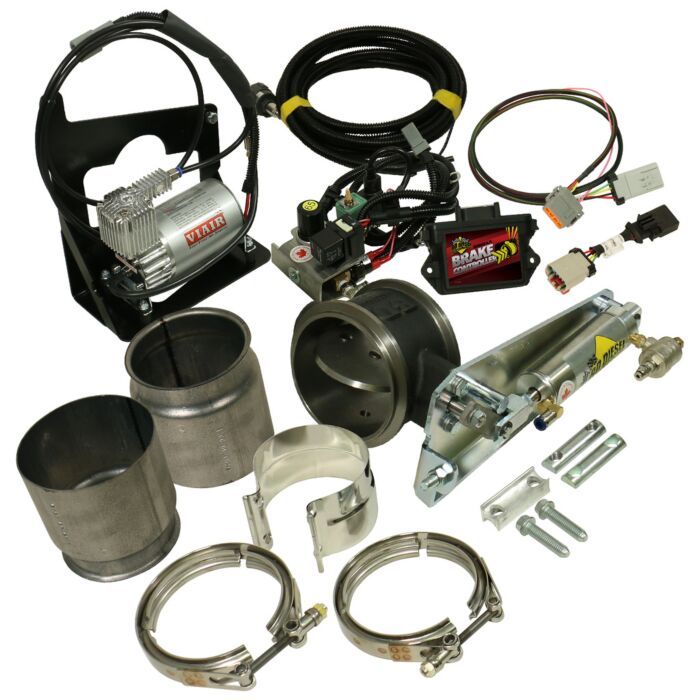

It has been almost 30 years since we started shipping our first exhaust brakes. With that many hill and mountain roads experienced, we used the knowledge gained to continue to deliver the best designed exhaust brake for your application. Incorporating BD's exclusive Variable Orifice Technology, BD's solid, offset butterfly, spring loaded cylinder and pressure regulation provides up to 150 retarding horsepower throughout the engine's RPM range - not just at high rpm like some designs that use holes or additional parts and claim it as a better idea. A range of rugged, cast-iron housings for Dodge, Ford, Chevy and motor home applications that incorporate BD's exclusive alumibronze bushing, piston ring-seals and stainless steel butterfly shaft has proven to stand-up under the harsh, high heat conditions of the exhaust environment. BD's butterfly valve and rotating shaft are made of stainless steel to resist corrosion. An air compressor is included in most kits for newer pick-up trucks.
Note
Currently this product has been tested with Bullydog and H&S tuners. Please check with your tuner if using EFI (EZ Lynk) or HP Tuners as these products have been known to have compatibility issues. Exhaust Back Pressure test gauge kit 1030050 suggested for the set-up of exhaust brakes If truck has no factory exhaust brake switch on dash, order kit 1027340 instead Not for sale on licensed California vehicles Will work on 2018-up models but requires special engine tuning - refer to installation manual for details
BD Diesel - 1027344 - Features
Ideal for applications where installed aftermarket performance turbo will not facilitate turbo mount exhaust brake
BD's exclusive alumibronze bushing
BD's exclusive Variable Orifice Technology
Piston ring-seals
BD's solid, offset butterfly
Stainless steel butterfly shaft
Spring loaded cylinder
Proven to stand-up under the harsh, high heat conditions of the exhaust environment
Pressure regulation
All mounting hardware are made of corrosion resistant stainless steel
Provides up to 150 retarding horsepower throughout the engine's RPM range
Air compressor included
Rugged, cast-iron housings
There's a reason why the BD Brake is the most widely-recognized diesel exhaust brake in the industry: It's the best! Compare it to the competition, and you'll see why.
BD Diesel - 1027344 - Vehicle Fitment
YEAR
MAKE - ENGINE SERIES
2007-2010
Dodge - 6.7 Ram 2500
2007-2010
Dodge - 6.7 Ram 3500
2011-2017
Dodge (Ram) - 6.7 2500
2011-2017
Dodge (Ram) - 6.7 3500
BD Diesel - 1027344 - Specifications
Manufacturer's Part Number
1027344
Manufacturer Name
BD Diesel Performance
Weight (Lbs)
29
Length
23
Width
16
Height
11
UPC
990011408950
Country of Origin
CA
HTC
8481809040
Hazmat
N
Prop 65 Cancer
Y
Prop 65 Reproductive
Y
Prop 65 Labeling
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov
Install Time
4 Hours
Parts Warranty
24-Months, 24,000 Miles
Labour Warranty
12-Months, 12,000 miles
Emissions
This product has met EPA's reasonable basis requirements and is legal for sale and use within the jurisdiction of the federal EPA. (EMS:2)
