Special Price $1,072.95 Regular Price $1,130.00

In stock

SKU:

1030606-DS-12

Special Price $1,072.95 Regular Price $1,130.00

N/A

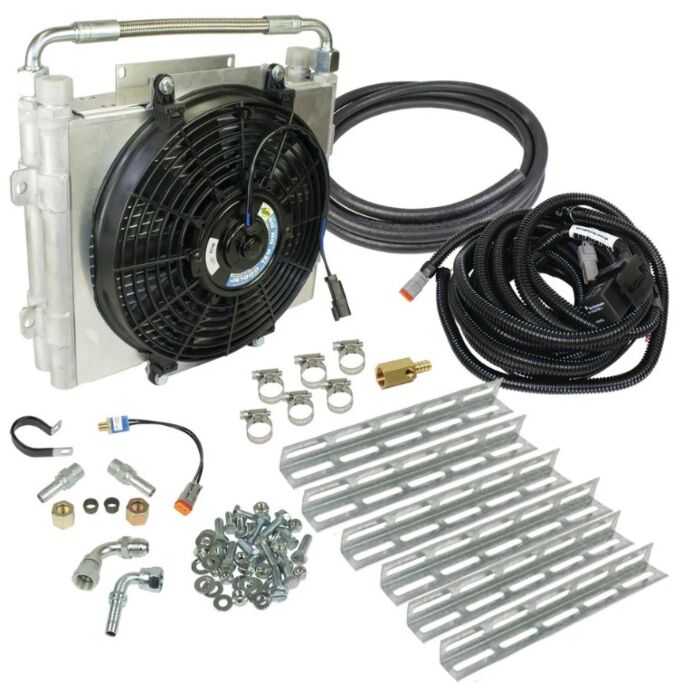

Xtrude Transmission Cooler with Fan - Double Stacked Complete Kit - 1/2in Lines

HOT Transmission oil has to be COOLED to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 36% better temperature drop than BD's standard single core kit. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.
Note
Intended to be used in conjunction with factory Transmission coolers and not as stand-alone units

BD Diesel - 1030606-DS-12 - Features


Large surface area to transfer heat for external air flow cooling	The pre-wired loomed harness with fuse and relay comes with plug-in connectors
Turbulent oil flow design promotes a more complete cooling	Dodge 47RH / 47RE / 48RE / 68RFE - 1/2-inch Cooler Lines
Large 5/8-inch ports prevents inlet/outlet restriction	Ford 5R110/6R140 - 1/2-inch Cooler Lines)
Furnace brazed rails have been tested to 300psi of pressure	Double stacked cores deliver over 40,000 BTU/HR of cooling
Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan	Over 350% temperature drop versus the factory system
Kits complete with all fittings, clamps, hoses and hardware	136% better temperature drop than XTRUDED single core kit
Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal

Manufacturer's Part Number	1030606-DS-12
Manufacturer Name	BD Diesel Performance
Weight (Lbs)	23
Length	23
Width	16
Height	11
UPC	990011403719
Country of Origin	CN
HTC	8708998180
Hazmat	N
Prop 65 Cancer	Y
Prop 65 Reproductive	Y
Prop 65 Labeling	WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov
Install Time	3 Hours 30 Minutes
Parts Warranty	12-Months, 24,000 miles
Emissions	This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)

1030606-DS - Dual StackTransmission Oil Cooler	Click to View
