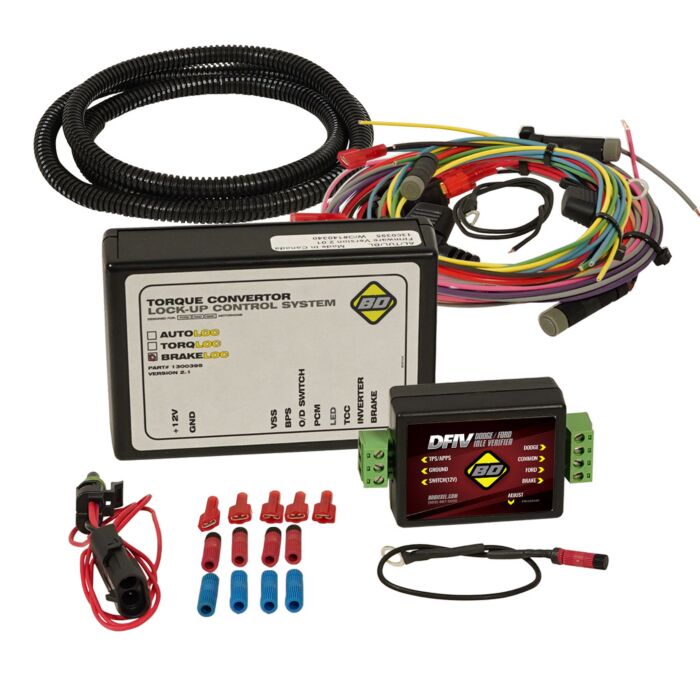

BrakeLoc - 1995-2003 Ford 7.3L Automatic Transmission
Make the Most of Your Power Stroke's exhaust backpressure valve! BD's BrakeLoc connects to the EBPV control wire, turning the factory valve into an electronically-controlled exhaust brake. Includes the BD AutoLoc to maintain lock-up when the exhaust brake is activated ensuring that 100% of the retarding force is being transferred in 3rd and 4th gears. Note that, because the EBPV is activated hydraulically, there is typically a 2-3 second delay between the time the valve is actuated and engine retarding occurs. While the BrakeLoc is an economical alternative to an exhaust brake, it is NOT intended as a substitute. For quicker, more effective braking, we recommend a BD exhaust brake system, which utilizes our Variable Orifice Technology, and won't stick like the stock EPB valve can.
Note
Not for sale on licensed California vehicles
BD Diesel - 1030750 - Features
Cost effective solution of engine retarding for towing with the automatic Transmission on the Ford PowerStrokes
Transmission oil temperatures will remain low because of little or no slippage occurring in the converter in these gears
Commands the Exhaust Back Pressure (EBP) valve to activate as well as keeping the lock-up clutch of the torque converter to stay engaged to allow up to 100% of the retarding force to be transferred while in 3rd and 4th gear
For more efficient retarding use or medium to heavy loads use BD Exhaust Brake 2033143, 2023144, 1037143 or 1027144
BD Diesel - 1030750 - Vehicle Fitment
YEAR
MAKE - ENGINE SERIES
1995-1996
Ford - 7.3 F-250
1997
Ford - 7.3 F-250 HD
1999-2003
Ford - 7.3 F-250 Super Duty
1995-1997
Ford - 7.3 F-350
1999-2003
Ford - 7.3 F-350 Super Duty
BD Diesel - 1030750 - Specifications
Manufacturer's Part Number
1030750
Manufacturer Name
BD Diesel Performance
Weight (Lbs)
1.4
Length
10.4
Width
8.4
Height
2.4
UPC
990011401005
Country of Origin
CA
HTC
8537109160
Hazmat
N
Prop 65 Cancer
Y
Prop 65 Reproductive
Y
Prop 65 Labeling
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov
Install Time
2 Hours
Parts Warranty
12-Months, 24,000 miles
Emissions
This product has met EPA's reasonable basis requirements and is legal for sale and use within the jurisdiction of the federal EPA. (EMS:2)
