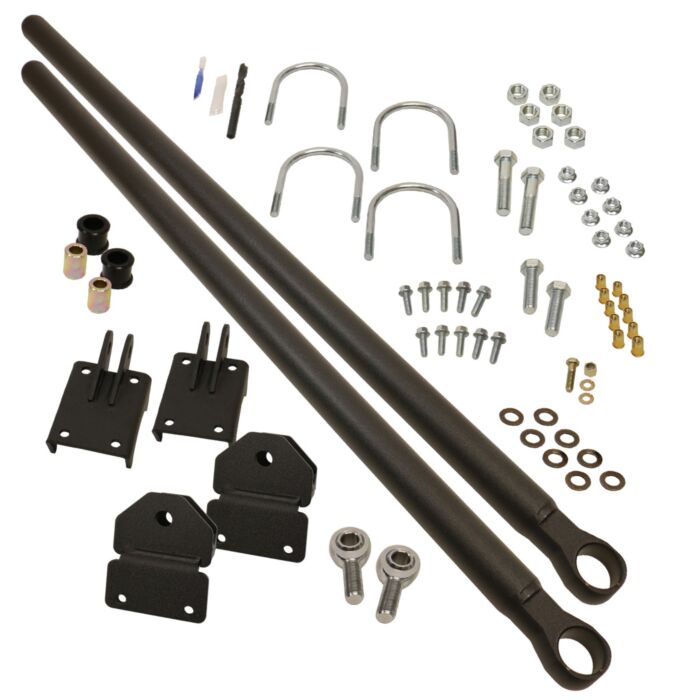

A truck's power doesn't always make it to the road. When the rear axle is allowed to rotate, wheel hop and loss of traction can occur. Get that lost power to the ground with a BD Traction Bar Kit! BD traction bars are engineered to precisely follow the OEM spring travel sweep and axle rotation. This minimizes ride stiffness, and ensures no adjustment is needed when pulling or hauling! Bolt on and built to last, with 2-inch OD tube and the highest quality QA1 heavy duty American-made rod ends rated for 28,000lbs each! Polyurethane bushings provide direct loading without excessive movement, unlike spring loaded designs. Whether you're towing, running a lift kit, bigger tires, high horsepower, competitive pulling or drag racing - make sure to stay in control of that suspension with a BD Traction Bar Kit.
Note
2010-2019 crew cab long box trucks require cutting and welding of the frame bracket 2014-2019 trucks with OEM air bags require cutting and welding of the axle bracket Designed for pick-up truck applications 闁肩儤甯￠崺鈧柍 cannot guarantee fitment on all Cab & Chassis models It is suggested in Heavy Duty applications to weld front mounts to frame. Please check aftermarket Airbag fitment before purchasing. Will not fit Dodge 2500 models equipped with coil sprung rear suspension
BD Diesel - 1032130 - Features
No welding required
Polyurethane bushings provide direct loading without excessive movement unlike spring loaded designs
2-inch OD tube with QA1 3/4-inch heavy duty American rod ends
Optimized to arc in the same path the axle travels during suspension movement which makes for a smooth ride and the ability to tow without having to adjust the bars
Prevents wheel hop, axle wrap and large angles on U-joints
All necessary hardware and Rivet-nut specific drill bit and tool included
No adjustment is needed when pulling or hauling
54-inch eye-to-eye length
Designed for trucks ranging from a 6-inch lift all the way to a 2-inch drop
BD Diesel - 1032130 - Vehicle Fitment
YEAR
MAKE - ENGINE SERIES
2003-2010
Dodge - 5.7 Ram 2500
2003-2008
Dodge - 5.9 Ram 2500
2007-2010
Dodge - 6.7 Ram 2500
2003
Dodge - 8.0 Ram 2500
2003-2009
Dodge - 5.7 Ram 3500
2003-2007
Dodge - 5.9 Ram 3500
2007-2010
Dodge - 6.7 Ram 3500
2003
Dodge - 8.0 Ram 3500
2011-2018
Dodge (Ram) - 5.7 2500
2014-2018
Dodge (Ram) - 6.4 2500
2011-2018
Dodge (Ram) - 6.7 2500
2011-2018
Dodge (Ram) - 5.7 3500
BD Diesel - 1032130 - Specifications
Manufacturer's Part Number
1032130
Manufacturer Name
BD Diesel Performance
Weight (Lbs)
53
Length
58
Width
9
Height
7
UPC
990011406024
Country of Origin
CA
HTC
8708806590
Hazmat
N
Prop 65 Cancer
Y
Prop 65 Reproductive
Y
Prop 65 Labeling
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov
Install Time
4 Hours
Parts Warranty
12-Months, 24,000 miles
Emissions
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
In this video we go in depth to show you the exact difference that BD Diesel Traction Bars can make for your truck. We show you not only that they DO Work, they also increase drivability and performance in your vehicle.
Do Traction Bars Work?
Do Traction Bars Work?
A truck's power doesn't always make it to the road. When the rear axle is allowed to rotate, wheel hop and loss of traction can occur. Get that lost power to the ground with a BD Traction Bar Kit! BD traction bars are engineered to precisely follow the OEM spring travel sweep and axle rotation.
