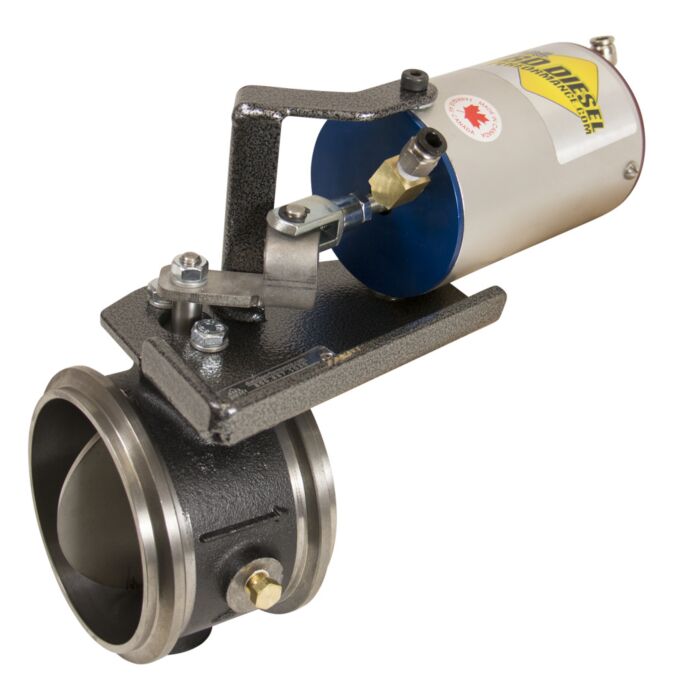

Exhaust Brake - 1994-1997 Ford 7.3L PowerStroke 4in exh Vac/Remote
It has been almost 30 years since we started shipping our first exhaust brakes. With that many hill and mountain roads experienced, we used the knowledge gained to continue to deliver the best designed exhaust brake for your application. Incorporating BD's exclusive Variable Orifice Technology, BD's solid, offset butterfly, spring loaded cylinder and pressure regulation provides up to 150 retarding horsepower throughout the engine's RPM range - not just at high rpm like some designs that use holes or additional parts and claim it as a better idea. A range of rugged, cast-iron housings for Dodge, Ford, Chevy and motor home applications that incorporate BD's exclusive alumibronze bushing, piston ring-seals and stainless steel butterfly shaft has proven to stand-up under the harsh, high heat conditions of the exhaust environment. BD's butterfly valve and rotating shaft are made of stainless steel to resist corrosion.
Note
Exhaust Back Pressure test gauge kit 1030050 suggested for the set-up of exhaust brakes Not for sale on licensed California vehicles Trucks with automatic Transmissions are suggested to also install an AutoLoc for electronic controlled lock-converters, or, a lower stall converter for manual or no lock-up converters
BD Diesel - 1037144 - Features
BD's exclusive Variable Orifice Technology
BD's exclusive alumibronze bushing
BD's solid, offset butterfly
Piston ring-seals
Spring loaded cylinder
Stainless steel butterfly shaft
Pressure regulation
Proven to stand-up under the harsh, high heat conditions of the exhaust environment
Provides up to 150 retarding horsepower throughout the engine's RPM range
All mounting hardware are made of corrosion resistant stainless steel
Rugged, cast-iron housings
There's a reason why the BD Brake is the most widely-recognized diesel exhaust brake in the industry: It's the best! Compare it to the competition, and you'll see why.
BD Diesel - 1037144 - Vehicle Fitment
YEAR
MAKE - ENGINE SERIES
1994-1996
Ford - 7.3 F-250
1997
Ford - 7.3 F-250 HD
1994-1997
Ford - 7.3 F-350
BD Diesel - 1037144 - Specifications
Manufacturer's Part Number
1037144
Manufacturer Name
BD Diesel Performance
Weight (Lbs)
21.8
Length
18.5
Width
9.8
Height
7.8
UPC
990011401425
Country of Origin
CA
HTC
8481809040
Hazmat
N
Prop 65 Cancer
Y
Prop 65 Reproductive
Y
Prop 65 Labeling
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov
Install Time
4 Hours
Parts Warranty
24-Months, 24,000 Miles
Labour Warranty
12-Months, 12,000 miles
Emissions
This product has met EPA's reasonable basis requirements and is legal for sale and use within the jurisdiction of the federal EPA. (EMS:2)
