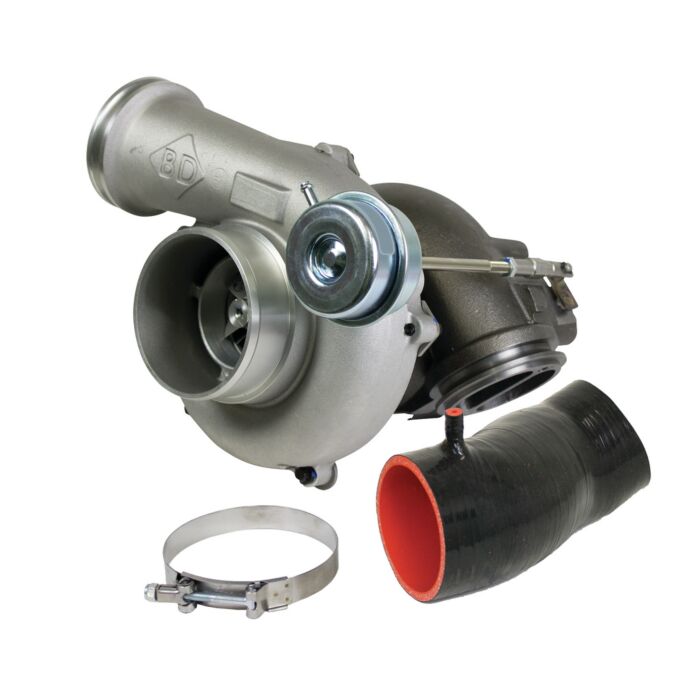

Turbo Thruster II Kit - Ford 1999.5-2003 7.3L (Pick-up only/No E-Series) (CARB)
BD's Turbo Thruster II turbo utilizes a custom-designed 360-degree thrust bearing and is mated to a heavy wall backplate to increase durability and reduce heat. Additionally, to improve centrifugal strength at high speed, BD uses a 66 mm Ballistic Billet compressor wheel. To prevent boost creep, BD's exclusive Heavy Duty Waste Gate controls maximum boost pressure while the 0.84 A/R turbine housing reduces exhaust temperatures and smoke levels on acceleration without surging. This unit outperforms the stock Turbocharger, improves fuel economy, and is a great fit for all off-road, street, and highway 7.3L Power Stroke applications. Plus, it is C.A.R.B. compliant!
Note
CARB EO No. D-553-2 F-Series Pick-up only / No E-Series Will not work on early 1999 PowerStrokes (build date 03/21/99 and earlier)
BD Diesel - 1047511 - Features
50 State Legal
No surging
BD designed thrust collar and back plate
GTP38 Turbochargers are serviceable and come with a new oil resistant intake hose and clamp
BD designed sintered brass 360-degree 6-pad thrust bearing
Great fit for off-road, street and highway applications!
Reduced heat build-up and increased bearing durability
1050 CFM / 525 HP
Ballistic Billet compressor wheel
Comp Wheel: 65.9mm 2.59in
BD's Heavy Duty Waste Gate
Turbine Wheel: 68mm 2.68in
Reduced exhaust temperatures and smoke levels
0.84 A/R turbine housing
BD Diesel - 1047511 - Vehicle Fitment
YEAR
MAKE - ENGINE SERIES
1999-2003
Ford - 7.3 F-250 Super Duty
1999-2003
Ford - 7.3 F-350 Super Duty
BD Diesel - 1047511 - Specifications
Manufacturer's Part Number
1047511
Manufacturer Name
BD Diesel Performance
Weight (Lbs)
32
Length
13
Width
13
Height
16
UPC
990011403443
CARB EO Number
D-553-2
Country of Origin
CA
HTC
8414800500
Hazmat
N
Prop 65 Cancer
Y
Prop 65 Reproductive
Y
Prop 65 Labeling
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov
Install Time
4 Hours
Parts Warranty
12-Months, 12,000 miles
Emissions
This product is covered under CARB EO and is legal for sale and use in all 50 states. (EMS:1)
A proven Ballistic Billet 65.9 mm compressor wheel improves centrifugal strength at high rotating speeds and boosts pressures. BD's exclusive Heavy Duty Waste Gate controls maximum boost pressure and 0.84 A/R turbine housing reduces exhaust temperatures and smoke levels on acceleration without surging. Outperforms the stock turbocharger and improves fuel economy and an excellent fit for all off-road, street and highway 7.3L Power Stroke applications. Plus, C.A.R.B. is compliant!
