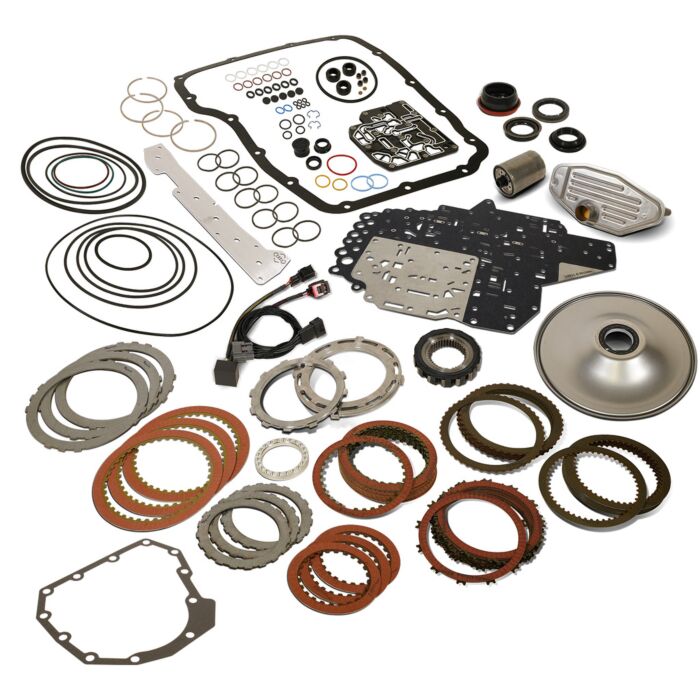

| Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks | Qty 15: OD Clutch Friction, OD Clutch Steel |
| Heavy duty accumulator plate to prevent accumulator blowout | Filter - Pan, Spin On |
| Pressure Control module delivers up to 250psi clutch apply pressure at full throttle | Pump Cover |
| Dynamically adjusts hydraulic apply pressures based on turbo boost/engine load | Billet OD/Reverse Selector Plate, OD/UD Reaction Plate |
| BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum | Stiffer Billet Intermediate Reaction Plate, Billet Over Drive/Rev Reaction Plate |
| Upgraded One Way Clutch/Sprag | Billet 4C Spring Retaining Ring |
| Over Drive clutches 17% increase and Under Drive clutches 20% increase | Gasket Kit - Oil Cooler, Oil Pan, Solenoid Pack |
| Qty 2: Check Balls 1/4in | Seal - Solenoid Pack Connector, 4wd Output Shaft, 2wd Output Shaft, Input Shaft |
| Qty 3: 2C Clutch Friction, 2C Clutch Steel, 4C Clutch Friction, 4C Clutch Steel | Seal Kit - 2-4C, Input Drum, Solenoid Pack, Internal, External |
| Qty 7: Reverse Clutch Friction, Reverse Clutch Steel | O-Ring - pump Cover |
| YEAR | MAKE - ENGINE SERIES |
|---|---|
| 2007-2010 | Dodge - 6.7 Ram 2500 |
| 2007-2010 | Dodge - 6.7 Ram 3500 |
| 2011-2018 | Dodge (Ram) - 6.7 2500 |
| 2011-2018 | Dodge (Ram) - 6.7 3500 |
| Manufacturer's Part Number | 1062025 |
| Manufacturer Name | BD Diesel Performance |
| Weight (Lbs) | 21 |
| Length | 23 |
| Width | 16 |
| Height | 11 |
| UPC | 990011405591 |
| Country of Origin | CA |
| HTC | 8708996890 |
| Hazmat | N |
| Prop 65 Cancer | Y |
| Prop 65 Reproductive | Y |
| Prop 65 Labeling | WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Parts Warranty | 12-Months, 12,000 miles |
| Emissions | This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4) |
| 1030369-Line Pressure Module | Click to View |
| 1060603 68 RFE One Way Clutch | Click to View |
| 1030362 Protect 68 Valve Body Upgrade kit | Click to View |
After final assembly, our 68rfe Transmissions are paired with a matched BD torque converter, engineered for tighter tolerances and designed for enhanced street and towing applications.
The relearn procedure resets the adaptive mode of the transmission and re-calibrates the shift time. Not following the relearn procedure properly, can lead to premature transmission wear or even catastrophic transmission damage.
| Truck Applications | Dodge 6.7 2007-09, Dodge 6.7L 2010-12, Dodge 6.7L 2013-2018 |
|---|---|
| SKU | 1062025 |
| Manufacturer | BD Diesel Performance |
| Weight | 21.00 |
