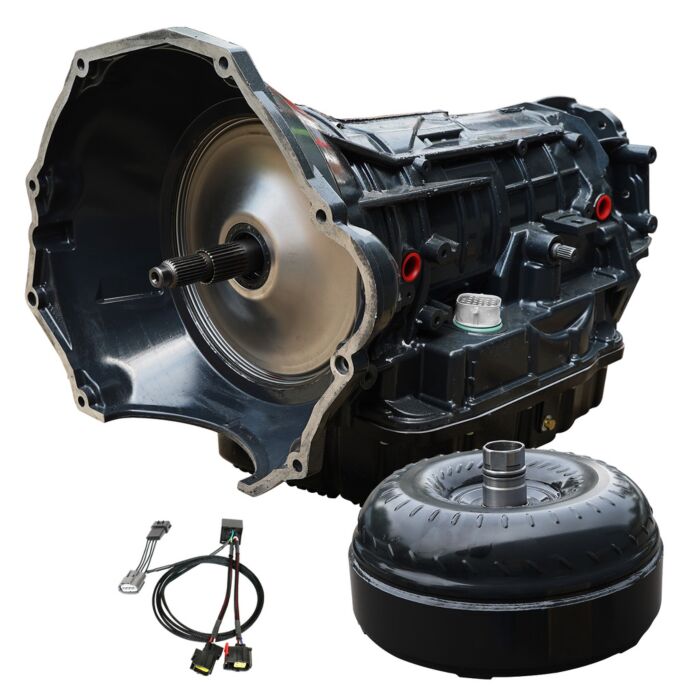

| Transmission | BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required |
| Hard anodized valve body and new solenoid pack installed in every unit | Performance Transmission but with the added touch of a Billet Input Shaft to take the "snap" from rapid throttle and high horsepower |
| Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks | Torque Convertor |
| Heavy duty cam & roller design Low Reverse one way clutch | Triple Disc |
| New 4C billet spring retainer | Enhanced Stall - Street/Towing applications |
| Steel girdle added to 2C piston to allow for more clutches and broader apply area | HD springs absorb shock of engagement |
| BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum | Stamp forged 1-piece cover |
| Over Drive clutches 33% increase & 2C clutches 33% increase | Eliminates warpage from clutch heat |
| Custom Big Stack Overdrive shaft | Taller cover can be rebuilt more often |
| BD reinforced accumulator plate | Trapezoid teeth design |
| TCC limit valve machined and sleeved to address high wear area with in pump | Engineered tighter tolerances |
| BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex | Self-centering trapezoid teeth design increases contact decreases wear and chatter |
| YEAR | MAKE - ENGINE SERIES |
|---|---|
| 2007-2010 | Dodge - 6.7 Ram 2500 |
| 2007-2010 | Dodge - 6.7 Ram 3500 |
| 2011-2018 | Dodge (Ram) - 6.7 2500 |
| 2011-2018 | Dodge (Ram) - 6.7 3500 |
| Manufacturer's Part Number | 1064262BM |
| Manufacturer Name | BD Diesel Performance |
| Weight (Lbs) | 339 |
| Length | 23.5 |
| Width | 44.5 |
| Height | 27.3 |
| UPC | 990011406949 |
| Country of Origin | CA |
| HTC | 8708996890 |
| Hazmat | N |
| Prop 65 Cancer | Y |
| Prop 65 Reproductive | Y |
| Prop 65 Labeling | WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Install Time | 9 Hours |
| Parts Warranty | 36-Months, 150,000 Miles |
| Labour Warranty | 12-Months, 24,000 miles |
| Emissions | This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4) |
| BD Core Acceptance | Click to View |
| 1030369 - Line Pressure Module | Click to View |
| 68rfe Transmission Instructions | Click to View |
BD Diesel is an innovative and world class company distributing products North American wide for domestic diesel and gas applications.
The relearn procedure resets the adaptive mode of the transmission and re-calibrates the shift time. Not following the relearn procedure properly, can lead to premature transmission wear or even catastrophic transmission damage.
BD's highly trained Transmission Builders are skilled in creating durable, long lasting, high performance transmissions that exceed the OEM standard.
| Truck Applications | Dodge 6.7 2007-09, Dodge 6.7L 2010-12, Dodge 6.7L 2013-2018 |
|---|---|
| SKU | 1064262BM |
| Manufacturer | BD Diesel Performance |
| Weight | 339.00 |
