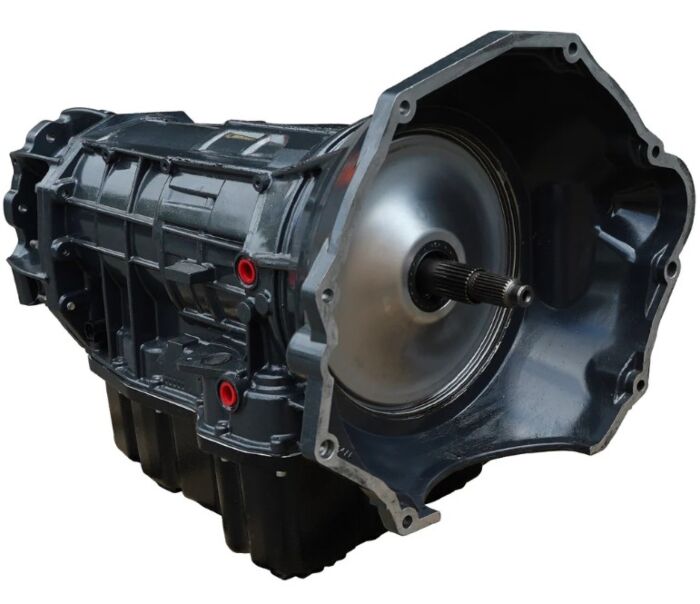

Trackmaster Transmission & Converter Package 68RFE Ram 2500/3500 6.7L Cummins 2007.5-2018

The BD TrackMaster 68rfe transmission is built for robust reliability in high-load applications! Designed for modified Cummins-equipped RAM Trucks, the TrackMaster increases strength with a modified valve body, billet input shaft, and HD Billet OD Drum. These modifications increase the torque capacity of the clutch packs, specifically with nearly 50% increased OD clutch apply! This is obtained with the oversized HD OD drum, combined with the BD Big Stack OD clutch pack, utilizing the 250psi apply pressure created by the ProTech68 valve body! The transmission also receives a BD Diesel Deep aluminum pan, for an additional 4.5 quarts of fluid, helping to keep transmission temperatures cool while towing. Every TrackMaster 68RFE transmission package includes a billet multi-disc ProForce 3D enhanced stall torque converter and is dyno tested before shipping.

BD Diesel - 1064263BM - Features


ProTech68 gasket-equipped hard anodized valve body to eliminate internal cross-leaks	Billet steel 2C piston girdle to allow increased clutch capacity and broader apply area
ProTech68 Pressure controller module ramps line pressure to 250psi, referencing MAP sensor for load, ensures line pressure is increased when it is needed most	BD QT100 billet steel pressure plates for increased clutch count, and reduced deflection and distortion
TCC limit valve machined and sleeved to address high wear area, and eliminate leaks	Additional clutches for increased torque holding capacity (33% more C2 and OD clutches), for less slip under load
Billet steel sleeved SSV bore to eliminate common leak area in 68RFE	BD Big Stack OD shaft for 16 apply surfaces
Thicker steel BD accumulator plate to eliminate blowout and reduce leakage	Heavy-duty billet OD drum for increased apply area, increasing torque capacity of the OD clutch
Heavy-duty cam & roller low-reverse sprag (one-way clutch) for increased sprag load capacity	Deep aluminum pan for an additional 4.5 quarts of fluid capacity to help keep temperatures lower
Billet input shaft for increased load capacity	Billet ProForce 3D multi-disc torque converter for reliable converter clutch apply under high load
Billet 4c spring retainer for better snap ring retention	OD clutch has 8+8 clutches, Rev has 2+2, 2C has 3+3, 4C has 3+3, UD has 5+5, and LR has 7+7

Manufacturer's Part Number	1064263BM
Manufacturer Name	BD Diesel Performance
Install Time	9 Hours
Parts Warranty	36-Months, 150,000 Miles
Labor Warranty	12-Months, 24,000 miles
Emissions	This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
GTIN	990011412018
Shipping Weight	315.00 lb.
Shipping Length	24 in.
Shipping Width	45 in.
Shipping Height	28 in.
