Your transmission was only designed to handle the torque and horsepower the stock engine delivers, and in the case of some Dodge models, even the stock torque can present a challenge. So when you start adding power modules, turbo upgrades and other bolt-ons, it's only a matter of time before the transmission wears out and eventually fails.
BD transmissions are built specifically to handle the high torque loads of diesel engines at our state-of-the-art transmission facility. We re-program the valve body for higher line pressure, and add heavy-duty clutches with up to 25% more material than stock. The stock thrust washers, which disintegrate and leave metal filings in your transmission, are replaced with roller Torrington bearings. We install NEW input shafts and hubs to eliminate possible metal fatigue or high torque load damage from prior use. We recommend billet steel input and output shafts for applications with extra big tires and modified power levels.
| Hard anodized valve body and new solenoid pack installed in every unit | Custom Big Stack overdrive shaft |
| Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks | BD reinforced accumulator plate |
| Heavy duty cam & roller design low reverse one way clutch | TCC limit valve machined and sleeved to address high wear area with in pump |
| New 4C billet spring retainer | BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex |
| Steel girdle added to 2C piston to allow for more clutches and broader apply area | BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required |
| BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum | Performance Transmission but with the added touch of a Billet Input Shaft to take the "snap" from rapid throttle and high horsepower |
| Over Drive clutches 33% increase & 2C clutches 33% increase |
| YEAR | MAKE - ENGINE SERIES |
|---|---|
| 2007-2009 | Dodge - 6.7 Ram 2500 |
| 2007-2010 | Dodge - 6.7 Ram 3500 |
| 2011-2018 | Dodge (Ram) - 6.7 2500 |
| 2011-2018 | Dodge (Ram) - 6.7 3500 |
| Manufacturer's Part Number | 1064264B |
| Manufacturer Name | BD Diesel Performance |
| Weight (Lbs) | 245 |
| Length | 23.5 |
| Width | 44.5 |
| Height | 27.3 |
| UPC | 990011405577 |
| Country of Origin | CA |
| HTC | 8708996890 |
| Hazmat | N |
| Prop 65 Cancer | Y |
| Prop 65 Reproductive | Y |
| Prop 65 Labeling | WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Install Time | 9 Hours |
| Parts Warranty | 36-Months, 150,000 Miles |
| Labour Warranty | 12-Months, 24,000 miles |
| Emissions | This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4) |
| 1030369 - Line Pressure Module | Click to View |
| 68rfe Transmission Instructions | Click to View |
| 68 RFE Warranty Form | Click to View |
| BD Core Acceptance | Click to View |
We are an innovative and world class company distributing products North American wide for domestic diesel and gas applications.
The relearn procedure resets the adaptive mode of the transmission and re-calibrates the shift time. Not following the relearn procedure properly, can lead to premature transmission wear or even catastrophic transmission damage.

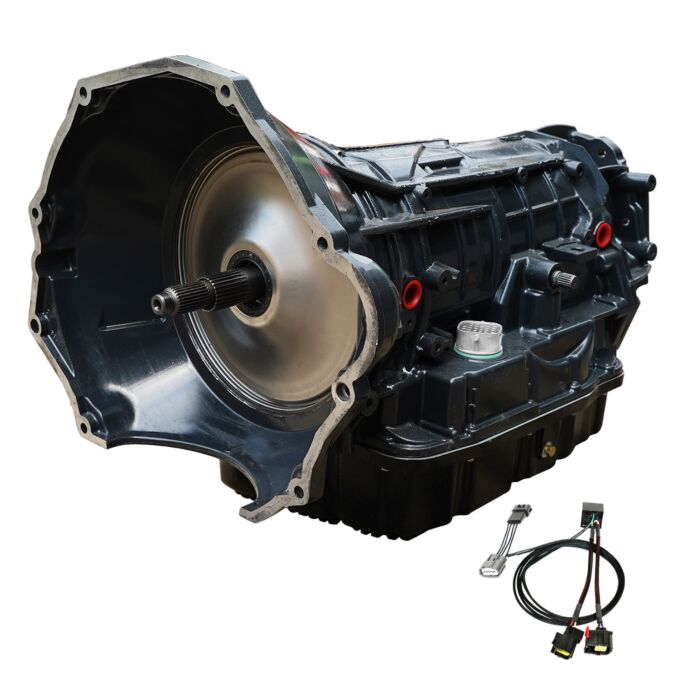

Specifically crafted for high-performance diesel pickup trucks, our TorqueMaster Transmission surpasses the demands of 600-700+hp applications, unlocking unprecedented levels of power and performance. With cutting-edge billet upgrades, increased clutch count, and elevated line pressure, the TorqueMaster Transmission ensures that your truck operates at peak performance, providing you with unmatched strength and reliability for the most demanding tasks. Prepare to dominate the roads and conquer any challenge with the superior capabilities of BD's TorqueMaster Transmission. Experience the exhilaration of raw power and take your diesel pickup to new heights!
| Truck Applications | Dodge 6.7 2007-09, Dodge 6.7L 2010-12, Dodge 6.7L 2013-2018 |
|---|---|
| SKU | 1064264B |
| Manufacturer | BD Diesel Performance |
| Weight | 245.00 |
