| Transmission | Proforce 3D Torque Converter |
| Hard anodized valve body and new solenoid pack installed in every unit | Triple Disc |
| Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks | HD springs absorb shock of engagement |
| Heavy duty cam & roller design Low Reverse one way clutch | Stamp forged 1-piece cover |
| New 4C billet spring retainer | Eliminates warpage from clutch heat |
| Steel girdle added to 2C piston to allow for more clutches and broader apply area | Taller cover can be rebuilt more often |
| BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum | Trapezoid teeth design |
| Over Drive clutches 33% increase & 2C clutches 33% increase | Engineered tighter tolerances |
| Custom Big Stack Overdrive shaft | Self-centering trapezoid teeth design increases contact decreases wear and chatter |
| BD reinforced accumulator plate | Thrust bearings - not plastic thrust washers |
| BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex | Riveted piston ensures alignment & eliminates vibration or embrittlement from welding |
| Special tuning required for 2019-up applications for increased line pressure. Line Pressure Controller not included. | Cast stator designs maximizes torque |
| YEAR | MAKE - ENGINE SERIES |
|---|---|
| 2019-2024 | Dodge (Ram) - 6.7 2500 |
| 2019-2024 | Dodge (Ram) - 6.7 3500 |
| Manufacturer's Part Number | 1064294SS |
| Manufacturer Name | BD Diesel Performance |
| Weight (Lbs) | 315 |
| Length | 23.5 |
| Width | 44.5 |
| Height | 27.3 |
| UPC | 990011409193 |
| Country of Origin | CA |
| HTC | 8708996890 |
| Hazmat | N |
| Prop 65 Cancer | Y |
| Prop 65 Reproductive | Y |
| Prop 65 Labeling | WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Install Time | 9 Hours |
| Parts Warranty | 36-Months, 150,000 Miles |
| Labour Warranty | 12-Months, 24,000 miles |
| Emissions | This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4) |
| BD Core Acceptance | Click to View |
| 68rfe Transmission Instructions | Click to View |
BD Diesel is an innovative and world class company distributing products North American wide for domestic diesel and gas applications.

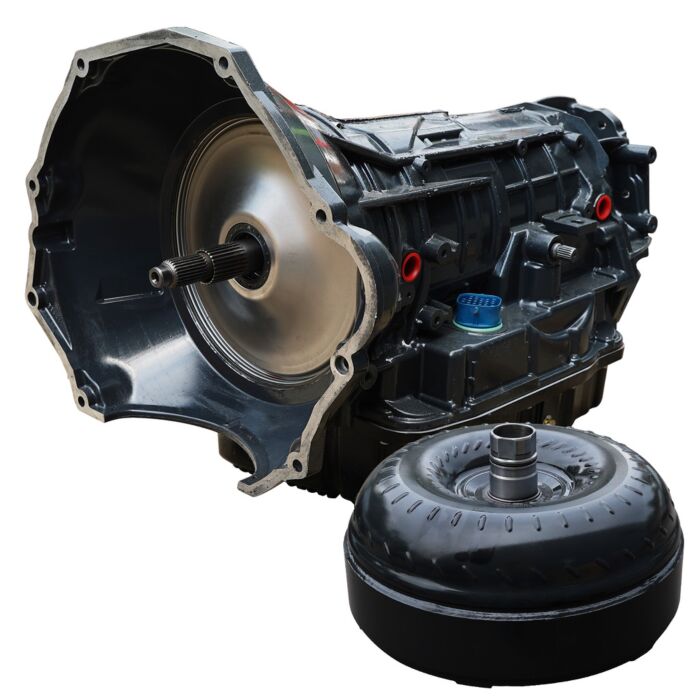

After final assembly, our 68rfe transmissions are paired with a matched BD torque converter, engineered for tighter tolerances and designed for enhanced street and towing applications. The torque converter and transmission are then dyno tested together to ensure the end product meets BD闁肩儤甯￠崺鈧柛鏂裤€ requirements for ultimate performance and reliability.
After final assembly, our 68rfe transmissions are paired with a matched BD torque converter, engineered for tighter tolerances and designed for enhanced street and towing applications. The torque converter and transmission are then dyno tested together to ensure the end product meets BD闁肩儤甯￠崺鈧柛鏂裤€ requirements for ultimate performance and reliability.
The relearn procedure resets the adaptive mode of the transmission and re-calibrates the shift time. Not following the relearn procedure properly, can lead to premature transmission wear or even catastrophic transmission damage.
| Truck Applications | Dodge 6.7L 2019 To 2024 |
|---|---|
| SKU | 1064294SS |
| Manufacturer | BD Diesel Performance |
| Weight | 315.00 |
