| Transmission | Pressure Controller |
| More clutches compared to stock and competitors | 76% more theoretical holding power |
| Billet Intermediate shaft to handle higher power | Delivers up to 300psi line pressure at WOT |
| Upgraded input shaft is tig welded to prevent OEM weld failure in demanding applications | Only active when boost over 15psi, unlike solenoid foolers or plugs which are active all the time |
| Custom BD patented pressure plates increase clutch count without sacrificing part strength | Does not create parasitic load or extra heat when inactive |
| Clutch Count: Forward 6 (20% increase over stock) | TORQUE CONVERTER |
| Clutch Count: Direct 6 (20% increase over stock) | Ideal upgrade converter for heavy tow use or higher horsepower |
| Clutch Count: Intermediate 8 (60% increase over stock) | Captured clutch design maintains good drivability feel |
| Clutch Count: Overdrive 8 (14% increase over stock) | Four surface clutch assembly doubles the OEM friction area |
| Clutch Count: Low Reverse 5 | Increased count of steels increases heat dissipation |
| Brand new valve body | 23% increased piston area for additional clutch clamping force |
| Electronic Line Pressure Controller for up to 300psi Line Pressure | Billet bearing hub, piston and clutch retainer |
| YEAR | MAKE - ENGINE SERIES |
|---|---|
| 2011-2016 | Ford - 6.7 F-250 Super Duty |
| 2011-2016 | Ford - 6.7 F-350 Super Duty |
| 2011-2016 | Ford - 6.7 F-450 Super Duty |
| 2011-2016 | Ford - 6.7 F-550 Super Duty |
| Manufacturer's Part Number | 1064504BM |
| Manufacturer Name | BD Diesel Performance |
| Weight (Lbs) | 400 |
| Length | 23.5 |
| Width | 44.5 |
| Height | 27.3 |
| UPC | 990011410847 |
| Country of Origin | CA |
| HTC | 8708996890 |
| Hazmat | N |
| Prop 65 Cancer | Y |
| Prop 65 Reproductive | Y |
| Prop 65 Labeling | WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Install Time | 12 Hours, Will Need Ford Scanner |
| Parts Warranty | 36-Months, 150,000 Miles |
| Labour Warranty | 12-Months, 12,000 miles |
| Emissions | This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4) |
| Install Notes | Will Need Ford Scanner |
| BD Core Acceptance | Click to View |
| 1064504 BD 6R140 Transmission | Click to View |
| 1031320 6R140 PressureLoc | Click to View |
When you purchase a BD Transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every Transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable Transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

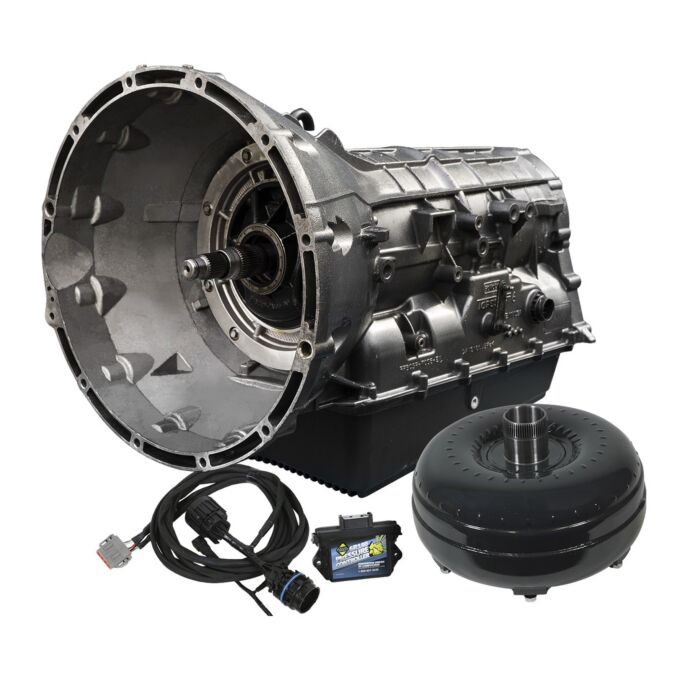

Introducing the TorqueMaster Ford 6R140 Transmission & Converter Package designed specifically for the 6.7L Power Stroke engines from 2017 to 2019. This comprehensive package is engineered to enhance both performance and reliability, providing a seamless driving experience whether you're towing heavy loads or hitting the open road.
| Truck Applications | Ford 6.7L 2011-2024 |
|---|---|
| SKU | 1064504BM |
| Manufacturer | BD Diesel Performance |
| Weight | 400.00 |
