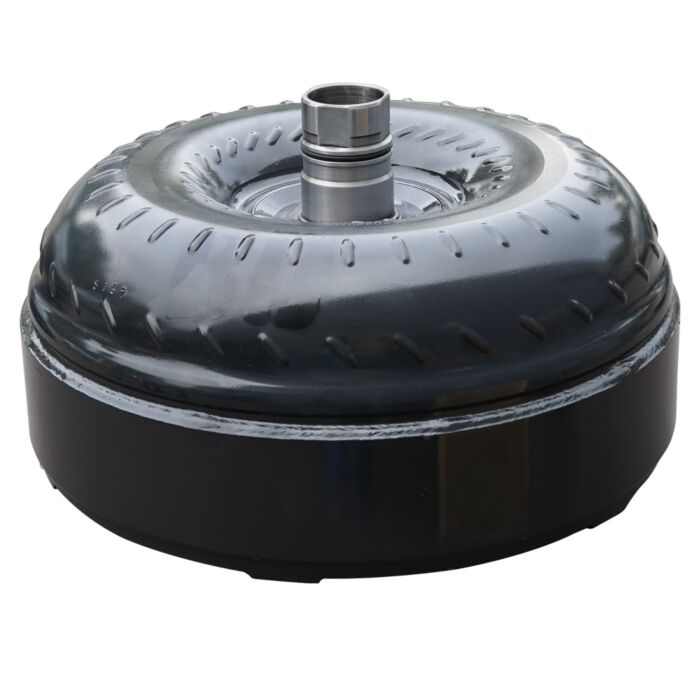

The BD 68RFE Proforce Torque Converter is designed for stock and modified 6.7L Diesels, from 350 to 550 flywheel horsepower, used in street and towing applications, at a great price. Featuring BD's exclusive "Enhanced Stall" performance cast aluminum stator that improves efficiency and durability for low RPM response in stock to higher horsepower applications. The 68RFE ProForce uses a billet forged front cover machined with thicker walls and stronger mounting pads and a 11.625 inch dual-clutch. The turbine fins are furnace-brazed for improved fluid coupling efficiency and new piston damper springs are installed for longevity and durability.
Note
Enhanced Stall - Street or Towing Applications / Low Stall - Street w/Low Rear End Ration/Stock Tires / High Stall - Race/Drag/Sled applications only
BD Diesel - 1070220X - Features
Good for 550 flywheel HP
Furnaced brazed turbine fins for improved fluid coupling efficiency
Ideal replacement for stock torque converter
Damper springs replaced
High performance Enhanced stall stator
11.625 inch dual-clutch
Great for street and towing applications
Billet forged front cover with thicker walls and stronger mounting pads
Lower rpm response than the stock converter
BD Diesel - 1070220X - Vehicle Fitment
YEAR
MAKE - ENGINE SERIES
2007-2010
Dodge - 6.7 Ram 2500
2007-2010
Dodge - 6.7 Ram 3500
2011-2024
Dodge (Ram) - 6.7 2500
2011-2024
Dodge (Ram) - 6.7 3500
BD Diesel - 1070220X - Specifications
Manufacturer's Part Number
1070220X
Manufacturer Name
BD Diesel Performance
Weight (Lbs)
74
Length
15
Width
15
Height
11
UPC
990011407496
Country of Origin
CA
HTC
8483401000
Hazmat
N
Prop 65 Cancer
Y
Prop 65 Reproductive
Y
Prop 65 Labeling
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov
Install Time
7 Hours
Parts Warranty
36-Months, 150,000 Miles
Labour Warranty
12-Months, 12,000 miles
Emissions
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
