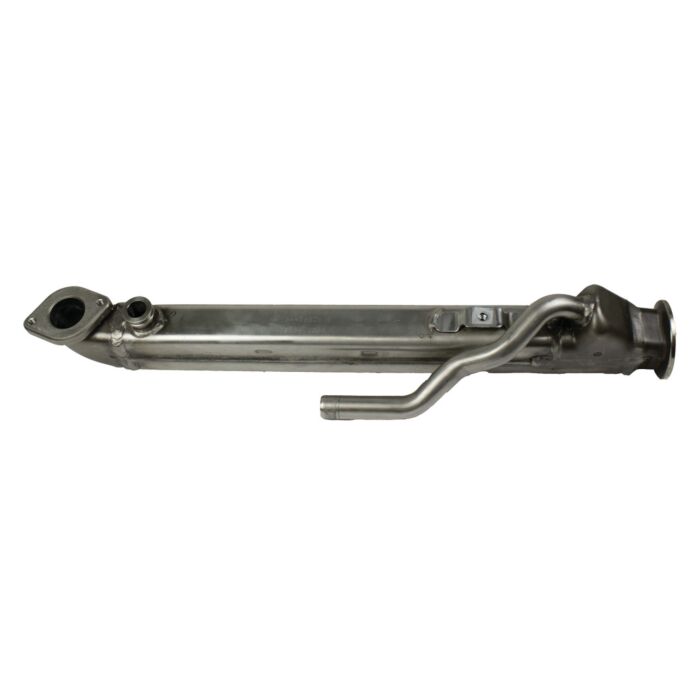

BD's replacement Heavy Duty EGR Coolers for the 2003-2007 6.0L Ford Power Stroke Diesels use TIG welded 304L stainless 0.375 in. O.D. x 0.048 in. walled tubes to replace the OEM inner cores that have been known to fail due to weak brazed joints. The failure of the OEM units has caused coolant to leak into the cylinders creating a hydrolock condition which will cause sever engine damage. Water deflectors are added to increase turbulence to the coolant flow to aide in heat dissipation. These exchange units are pressure tested, include O-ring and threaded insert. No performance tuner required and will not activate the engine light.
Note
After production date 9/22/03
BD Diesel - 1090202 - Features
5-Year Limited Warranty
Includes O-ring and threaded insert
Replacement Heavy Duty EGR Coolers for 2003-2007 6.0L Ford Power Stroke Diesels
Comes with 1900204 Gasket Set
TIG welded 304L stainless 0.375in.O.D. x 0.048in. walled tubes replace the OEM inner cores
Prevents premature failure due to weak brazed joints
Water deflectors added to increase turbulence to flow to aid in heat dissipation
Pressure tested
BD Diesel - 1090202 - Vehicle Fitment
YEAR
MAKE - ENGINE SERIES
2004-2005
Ford - 6.0 E-350 Club Wagon
2004-2007
Ford - 6.0 E-350 Super Duty
2004-2007
Ford - 6.0 F-250 Super Duty
2004-2007
Ford - 6.0 F-350 Super Duty
BD Diesel - 1090202 - Specifications
Manufacturer's Part Number
1090202
Manufacturer Name
BD Diesel Performance
Weight (Lbs)
9
Length
28
Width
9
Height
8
UPC
990011403535
Country of Origin
CN
HTC
8409999190
Hazmat
N
Prop 65 Cancer
Y
Prop 65 Reproductive
Y
Prop 65 Labeling
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov
Install Time
3 Hours
Parts Warranty
60-Months, Unlimited Miles
Emissions
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
