Filter cross-reference guide for the FASS D08 150G fuel system. Use the chart below to match the correct fuel filter and water separator by micron rating across Baldwin, Carquest, CAT, Donaldson, Fleetguard and other equivalents when servicing your fuel system.
Download the Original PDF Manual
Currently Installed Filters

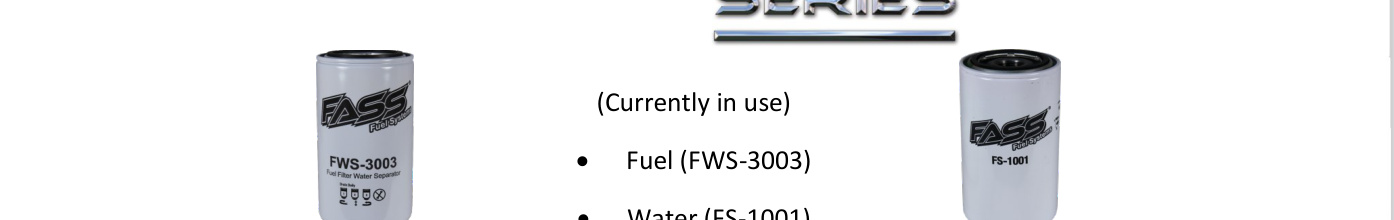

The FASS Titanium Series D08 150G system ships with the following FASS filters. Use these as your baseline when ordering replacements or selecting a cross-reference equivalent below.
- Fuel filter / water separator: FASS FWS-3003
- Water separator: FASS FS-1001
NOTE: The micron rating (shown in parentheses, e.g. 5M = 5 micron) indicates how fine each element filters. When substituting a cross-reference part, match the micron rating as closely as possible to maintain proper filtration and fuel flow.
Fuel Filter & Water Separator Cross-Reference
| Fuel Filter (Micron Rating) | Water Separator (Micron Rating) |
|---|---|
| Baldwin BF7633 (5M) | Baldwin BF1258 (10M) |
| Carquest 86528 (2M) | Baldwin BF1214 |
| CAT 1P2299 (6M) | Baldwin BF7546 (10M) |
| Donaldson P550625 (3M) | Donaldson P558000 (20M) |
| Donaldson P551025 (4M) | Donaldson P551000 (10M) |
| Donaldson P551311 (3M) | Donaldson P551001 (10M) |
| Donaldson P551313 (3M) | Fleetguard FS1282 (14M) |
| Donaldson P553203 (3M) | Fleetguard FS-1000 (10M) |
| Donaldson P557440 (6M) | Fleetguard FS-1001 (10M) |
| Fleetguard FF5320 (2M) | Fleetguard FS-1009 (14M) |
| Fram P8334 (2M) | Fleetguard FS-1212 (14M) |
| Hastings FF1079 (2M) | LuberFiner LFF8011 |
| Wix 33352 (6M) | LuberFiner LFF8000 |
| Wix 33528 (2M) | Motorcraft FD818 (14M) |
| Wix 33674 (2M) | Wix 33522 (10M) |
| — | Wix 33405 (14M) |
