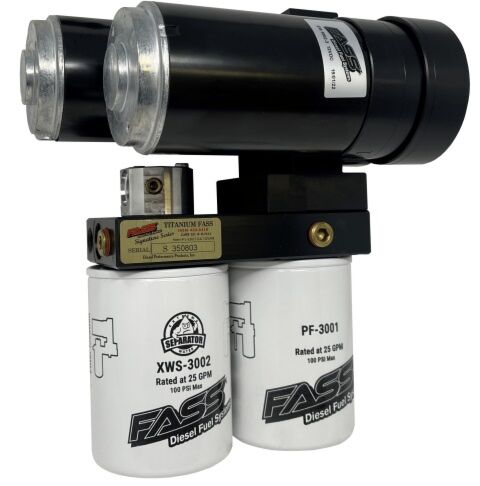

FASS Fuel COMP540G Competition Series 540GPH (70 PSI)
The Competition Series diesel fuel System was specifically designed for high performance diesel applications that demand a large volume of fuel supply.
Each Competition Series System comes equipped with our new High Flow Adjustable Regulator which can provide excellent pressure regulation up to 600 gallons per hour!
The Competition Series utilizes our Extreme Water Separator that removes over 99% of the water that can be found in diesel fuel (3rd party laboratory tested) and filters out damaging particulates down to 2 microns.
This is a universal System and does not come with fuel lines, wiring, or fittings.
Electrical Requirements: Each motor will need a 30 amp fuse and we recommend 10 gauge wiring to each motor. Each electric motor can draw up to 10 amps max.
Fuel Line Requirements: A single -12 suction line is recommended while a -8 or -10 engine feed and FASS return line is sufficient.
Competition Series 540G Information:
Supplied with Our Universal Mounting Bracket.
Pressure Adjustable from 0-70 PSI.
-10 AN Inlet, Outlet, and Pressure Regulator Ports.
Removes Water, Air and Debris from Diesel Fuel.
2 Micron Filtration Rating.
1/8 NPT Pressure Gauge Port.
Easier to prime than a mechanical gear System.
70 PSI Maximum Pressure.
1,000,000 Mile Motor
Competition Series 540G Flow Rates:
540+ Gallons Per Hour at Free Flow (0 PSI).
540+ Gallons Per Hour at 10 PSI.
540 Gallons Per Hour at 20 PSI.
522 Gallons Per Hour at 30 PSI.
516 Gallons Per Hour at 40 PSI.
504 Gallons Per Hour at 50 PSI.
486 Gallons Per Hour at 60 PSI.
468 Gallons Per Hour at 70 PSI.
FASS Fuel Systems - COMP540G - Features
The Competition Series diesel fuel System was specifically designed for high-performance diesel applications that demand a large volume of fuel supply
-10 AN Inlet, Outlet, and Pressure Regulator Ports
Each Competition Series System comes equipped with the new FASS High Flow Adjustable Regulator which can provide excellent pressure regulation up to 600 gallons per hour!
Removes Water, Air and Debris from Diesel Fuel
The Competition Series utilizes FASS Extreme Water Separator that removes over 99% of the water that can be found in diesel fuel (3rd party laboratory tested) and filters out damaging particulates down to 2 microns
2 Micron Filtration Rating
This is a universal System and does not come with fuel lines, wiring, or fittings
1/8 NPT Pressure Gauge Port
The FASS COMPETITION SERIES is a one of a kind item and to own one, FASS must make certain you are ready for its power
Easier to prime than a mechanical gear System
Two WH-1006-3R can be purchased to power the FASS Competition Series motors if you do not wish to build a custom wire harness
70 PSI Maximum Pressure
Supplied with FASS Universal Mounting Bracket
1,000,000 Mile Motor
Pressure Adjustable from 0-70 PSI
FASS Fuel Systems - COMP540G - Specifications
Manufacturer's Part Number
COMP540G
Manufacturer Name
FASS
Shipping Weight
40 lbs
Dimensions
18 閼 14 閼 12 in
Vehicle Type
Universal
Competition Series Fuel Systems for ANY horsepower level
Competition Series Fuel Systems for ANY horsepower level
Engineered for the demands of drag racing, sled pulling, and dyno competitions, our new Competition Series Fuel Systems can support ANY horsepower level with pure, air-free diesel fuel.
Available in 330GPH, 360GPH, and 540GPH configurations闁炽儲鎽昽mpetition Series Fuel Systems combine extremely high flow rates with the world-class filtration you've come to expect from FASS. Additionally, Competition Series Fuel Systems eliminate the need for dual fuel systems闁炽儲鏁俥ducing weight and simplifying installation!
