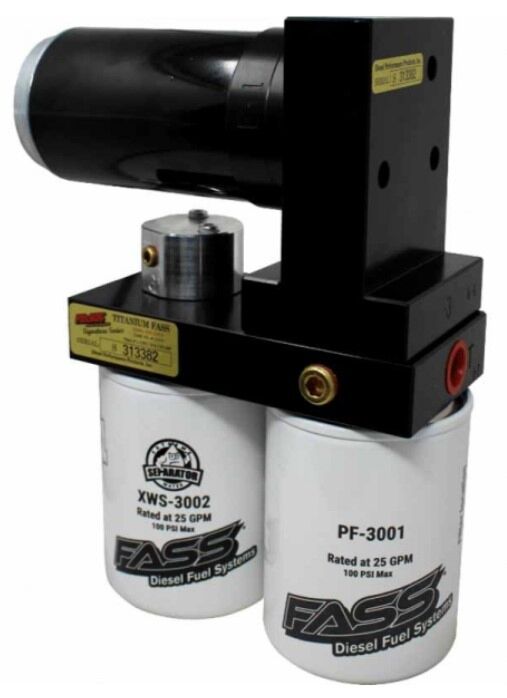

FASS Fuel TSF14250F220G Titanium Signature Series 220GPH Fuel System
The Titanium Signature Series diesel fuel System was engineered by FASS Diesel Fuel Systems to be the top performing, longest lasting and most reliable aftermarket filtration System in the diesel industry. Rated at 220 gallons per hour, at 60-65 PSI and backed by our limited lifetime warranty the Titanium Signature Series fuel System can support your Ford Powerstroke 7.3L and 6.0L diesel engine. A Titanium Signature Series fuel System also offers advanced filtration benefits that will help protect your Powerstroke injection Systems, effectively extending the life of your Diesel Injectors. These Benefits include FASS Diesel Fuel Systems patented air/vapor removal process. Powerstroke diesel engines are known for having injector failure issues; this can be caused by several different factors and FASS Filtration Systems is designed to eliminate those that are fuel related.
This kit includes a Bulkhead Fitting and Suction Tube. Machined from 6061 T-6 Billet Aluminum, the Bulkhead fitting functions as both a suction tube and return and features a 5/8" Suction Tube along with a ½"" Fuel Return Port. This new and improved version from our previous Suction Tube allows the user to plum their FASS return line directly to their bulkhead fitting, eliminating all cutting of the filler neck, and significantly speeds up the installation process. The pickup tube is fabricated out of PTFE Teflon which can be easily cut to adapt to different depth of fuel tanks. Properly installed, you can safely operate down to about 1/8 tank of fuel.
FASS Whisper Technology (FWT)was engineered to meet the stringent demands of today's quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System's high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a "whisper" while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.
Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and to prevent eddy currents from forming within the corner of a 90-degree sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly "Polished" (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help insure "EXTREME" cold weather operations!
Bolt On Bracket Mounts old mounting styles required drilling or welding when mounting your new System. This has now been simplified with our new bolt on brackets that utilize your Ford Super Duty factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series System takes only minutes and all brackets are made from machined steel for superior support and strength.
FASS Fuel Systems - TSF14250F220G - Features
Whisper Technology
Bulkhead Fitting and Suction Tube Kit
New Bolt On Bracket Installation
2 Micron Filtration Rating
Preset 60-65 PSI Fuel Pressure
Fuel Mileage Improvement
Complete Replacement System
Improved Fuel Volume Delivery
220 Gallons Per Hour Flow Rating
Smoother Engine Idle
Removes Water, Air & Debris From Diesel Fuel
Optional Electric Heater Ports
Protects and Extends The Life Of Your Injectors
Optional Fuel Pressure Gauge Port
Improved Cold Weather Starts
1,000,000 Mile Motor
1/2 Inch Fuel Lines and Ports
30,000 Mile Filter Life Expectancy
FASS Fuel Systems - TSF14250F220G - Vehicle Fitment
YEAR
MAKE - ENGINE SERIES
1999
Ford - 7.3L Powerstroke
2000
Ford - 7.3L Powerstroke
2001
Ford - 7.3L Powerstroke
2002
Ford - 7.3L Powerstroke
2003
Ford - 7.3L Powerstroke
2003
Ford - 6.0L Powerstroke
2004
Ford - 6.0L Powerstroke
2005
Ford - 6.0L Powerstroke
2006
Ford - 6.0L Powerstroke
2007
Ford - 6.0L Powerstroke
FASS Fuel Systems - TSF14250F220G - Specifications
1999-2007 Ford F-250/350 7.3L/6.0L Powerstroke (Moderate To Extreme)
NUMBERS DON'T LIE: The Test Results... | FASS Diesel Fuel Systems
NUMBERS DON'T LIE: The Test Results... | FASS Diesel Fuel Systems
We spent over $14,000 on 3rd-party testing to highlight the difference in fuel purity between FASS fuel filters and the competition.
The laboratory results showed a DRASTIC difference in water separation between FASS filters and our competition's offerings. With vastly more water getting through, our competitor's filters simply don't offer the same level of protection for your injection system as FASS.
