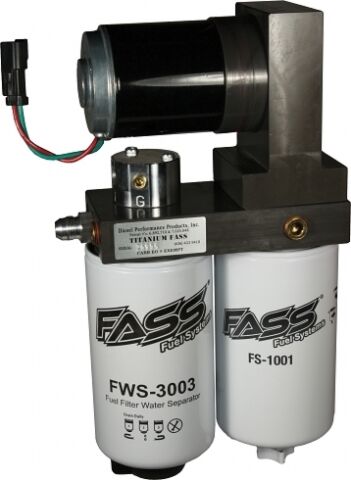

FASS TITANIUM Series Fuel Air Separation System Kit
The Titanium Series uses the same blueprint as our HD Series just in a smaller package. It is designed for the pickup while utilizing all the best features of the HD series built into a smaller c...
A FASS Fuel Systems can be a beneficial upgrade for your GM Duramax LML diesel engine, this is because your Duramax doesn't come with a factory System like other diesels. This requires your CP3 injection System to pull your fuel under a vacuum, adding additional stress to your CP3 System and risk introduce additional air into your fuel. This is where a Titanium FASS Fuel System comes in to help.
The Titanium Signature Series diesel fuel System was engineered by FASS Fuel Systems to be the top performing, longest lasting and most reliable aftermarket filtration System in the diesel industry. Rated at 165 gallons per hour and backed by our limited lifetime warranty the Titanium Signature Series System is capable of supporting your GM Duramax 6.6L diesel engine with enough fuel for multiple fueling System upgrades. A Titanium Signature Series System also offers advanced filtration benefits that will help protect your Duramax's injection Systems, effectively extending the life of your Injection System and Injectors. These Benefits include an improved filtration rating of 2 Microns, a built in water separation filter and FASS Fuel Systems patented air/vapor removal process. Duramax diesel engines are known for having injector failure issues; this can be caused by several different factors and FASS Filtration Systems is designed to eliminate those that are fuel related.
FASS Whisper Technology (FWT) was engineered to meet the stringent demands of today's quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System's high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a "whisper" while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.
Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and to prevent eddy currents from forming within the corner of a 90-degree sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly "Polished" (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help insure "EXTREME" cold weather operations!
Bolt On Bracket Mounts old mounting styles required drilling or welding when mounting your new System. This has now been simplified with our new bolt on brackets that utilize your Ford Super Duty factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series System takes only minutes and all brackets are made from machined steel for superior support and strength.
FASS Fuel Systems - TS C11 165G - Features
165GPH @ 8-10 PSI
Preset 8-10 PSI Fuel Pressure
Whisper Technology
Complete Replacement System
Smoother Engine Idle
165 Gallons Per Hour Flow Rating
2 Micron Filtration Rating
Removes Water, Air and Debris From Diesel Fuel
1/2-Inch Fuel Lines and Ports
Protects and Extends The Life Of Your Injectors
30K Mile Filter Life Expectancy
Improved Cold Weather Starts
Improved Cold Weather Starts
Decreases Carbon Monoxide and Carbon Dioxide Emissions
New Bolt On Bracket Installation
½ Inch Fuel Lines and Ports
Removes Water, Air and Debris From Diesel Fuel
Fuel Mileage Improvement
Increases Efficiency, Performance & Smoother Idle
Improved Fuel Volume Delivery
Optional Electric Heater & Fuel Pressure Gauge Port
Smoother Engine Idle
Protects & Extends The Life Of Your Fuel System & Injectors
