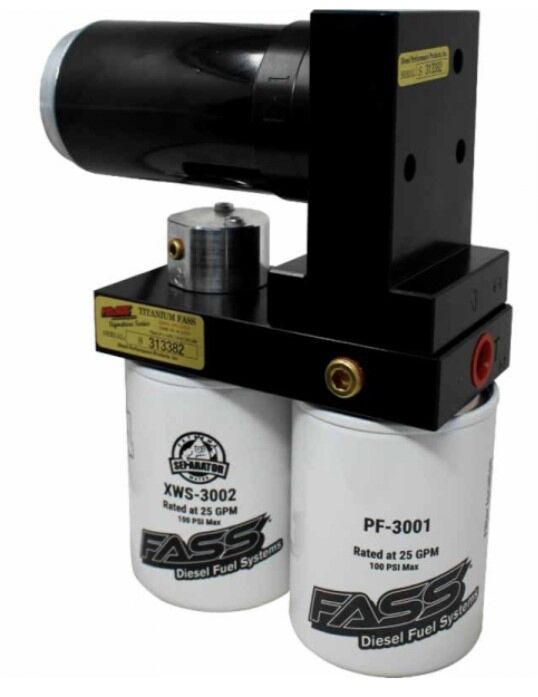

FASS TSF18290F240G Titanium Signature Series 240GPH Fuel System
The Titanium Signature Series diesel fuel System was engineered by FASS Diesel Fuel Systems to be the top performing, longest lasting and most reliable aftermarket filtration System in the diesel industry. Rated at 220 gallons per hour, high pressures of 65PSI and backed by our limited lifetime warranty the Titanium Signature Series System can support your Ford Powerstroke 6.7L diesel engine with enough fuel for 900-1200 HP aggressive tuning and high-performance fuel System upgrades. A Titanium Signature Series fuel System also offers advanced filtration benefits that will help protect your Powerstroke injection Systems, effectively extending the life of both your Injection System and Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter and FASS Diesel Fuel Systems patented air/vapor removal process. Aftermarket Systems are important for both drivers and high-performance applications when looking to improve either fuel economy or increase horsepower/torque.
This kit includes a FASS BHF-1005 (Bulkhead and Suction Tube Kit). Machined from 6061 T-6 Billet Aluminum. This Bulkhead fitting is designed to mount directly to the factory fuel tank module (sending unit) to allow the FASS to directly draw and return fuel to the fuel tank module, effectively eliminating all 1/4 tank and 1/8 tank issues when installed correctly. The pickup tube is fabricated out of PTFE Teflon which can be easily cut to adapt to different depth of fuel tanks. Properly installed, you can safely operate down to approximately 0 miles until empty.
FASS Whisper Technology (FWT) was engineered to meet the stringent demands of today's quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System's high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a "whisper" while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.
Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and to prevent eddy currents from forming within the corner of a 90-degree sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly "Polished" (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help insure "EXTREME" cold weather operations!
Bolt On Bracket Mounts old mounting styles required drilling or welding when mounting your new System. This has now been simplified with our new bolt on brackets that utilize your Ford Super Duty factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series System takes only minutes and all brackets are made from machined steel for superior support and strength.
FASS Fuel Systems - TSF18290F240G - Features
Whisper Technology
2 Microns Absolute Filtration Rating
New Bolt On Bracket Installation
Protects and Extends The Life Of Your Injectors
Preset 65 PSI Fuel Pressure
Improved Cold Weather Starts
Complete Replacement System
Decreases Carbon Monoxide and Carbon Dioxide Emissions
240 Gallons Per Hour Flow Rating
1/2" Fuel Lines and Ports
Removes Water, Air and Debris From Diesel Fuel
FASS Fuel Systems - TSF18290F240G - Vehicle Fitment
YEAR
MAKE - ENGINE SERIES
2017
Ford - 6.7L Powerstroke
2018
Ford - 6.7L Powerstroke
2019
Ford - 6.7L Powerstroke
2020
Ford - 6.7L Powerstroke
2021
Ford - 6.7L Powerstroke
2022
Ford - 6.7L Powerstroke
2023
Ford - 6.7L Powerstroke
FASS Fuel Systems - TSF18290F240G - Specifications
2017-2023 Ford F-250/350 6.7L Powerstroke (Highly Modified)
NUMBERS DON'T LIE: The Test Results... | FASS Diesel Fuel Systems
NUMBERS DON'T LIE: The Test Results... | FASS Diesel Fuel Systems
We spent over $14,000 on 3rd-party testing to highlight the difference in fuel purity between FASS fuel filters and the competition.
The laboratory results showed a DRASTIC difference in water separation between FASS filters and our competition's offerings. With vastly more water getting through, our competitor's filters simply don't offer the same level of protection for your injection system as FASS.
