Main Bearings | 89-16 Dodge 5.9L & 6.7L Cummins

Home
Main Bearings | 89-16 Dodge 5.9L & 6.7L Cummins

Skip to the end of the images gallery

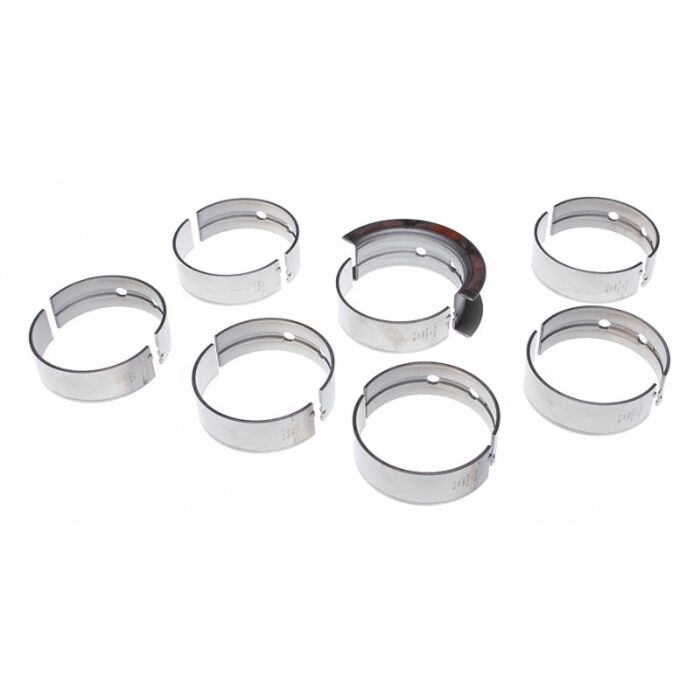

main product photo

Skip to the beginning of the images gallery

Fast & free shipping
On all orders over $99.00
Guaranteed Customer Satisfaction
Full Customer Support
Low Price Guarantee
Always Low Prices
Secure Payment
Safe shopping guarantee

Dodge Cummins Pistons

Dodge Cummins Pistons

Special Price $107.50 Regular Price $115.20

In stock

SKU:

MS-2328P

Special Price $107.50 Regular Price $115.20

Main Bearings | 89-16 Dodge 5.9L & 6.7L Cummins

MS-1717P-STD

Specifications:

Component No.	MB-3110P	MB-3109P(F)
Positions	1-2-3-4-5-7	6
Material	TM-112	TM-112
Min. Std. Shaft Diameter	3.2674IN 82.9920MM	3.2674IN 82.9920MM
Max. Std. Shaft Diameter	3.2682IN 83.0123MM	3.2682IN 83.0123MM
Min. Vert. Oil Clearance	0.0017IN 0.0432MM	0.0017IN 0.0432MM
Max. Vert. Oil Clearance	0.0047IN 0.1194MM	0.0047IN 0.1194MM
Max. Wall	0.0970IN 2.4638MM	0.0970IN 2.4638MM
Min. Brg. O.D. or Housing Bore	3.4637IN 87.9780MM	3.4637IN 87.9780MM
Max. Brg. O.D. or Housing Bore	3.4651IN 88.0135MM	3.4651IN 88.0135MM
Component No.	1.1430IN 29.0322MM	1.4700IN 37.3380MM

Complete Set of 8

MS-1717P-25

Specifications:

Component No.	MB-3110P	MB-3109P(F)
Positions	1-2-3-4-5-7	6
Material	TM-112	TM-112
Min. Std. Shaft Diameter	3.2674IN 82.9920MM	3.2674IN 82.9920MM
Max. Std. Shaft Diameter	3.2682IN 83.0123MM	3.2682IN 83.0123MM
Min. Vert. Oil Clearance	0.0017IN 0.0432MM	0.0017IN 0.0432MM
Max. Vert. Oil Clearance	0.0047IN 0.1194MM	0.0047IN 0.1194MM
Max. Wall	0.0970IN 2.4638MM	0.0970IN 2.4638MM
Min. Brg. O.D. or Housing Bore	3.4637IN 87.9780MM	3.4637IN 87.9780MM
Max. Brg. O.D. or Housing Bore	3.4651IN 88.0135MM	3.4651IN 88.0135MM
Component No.	1.1430IN 29.0322MM	1.4700IN 37.3380MM

Complete Set of 8

MS-1717P-50

Specifications:

Component No.	MB-3110P	MB-3109P(F)
Positions	1-2-3-4-5-7	6
Material	TM-112	TM-112
Min. Std. Shaft Diameter	3.2674IN 82.9920MM	3.2674IN 82.9920MM
Max. Std. Shaft Diameter	3.2682IN 83.0123MM	3.2682IN 83.0123MM
Min. Vert. Oil Clearance	0.0017IN 0.0432MM	0.0017IN 0.0432MM
Max. Vert. Oil Clearance	0.0047IN 0.1194MM	0.0047IN 0.1194MM
Max. Wall	0.0970IN 2.4638MM	0.0970IN 2.4638MM
Min. Brg. O.D. or Housing Bore	3.4637IN 87.9780MM	3.4637IN 87.9780MM
Max. Brg. O.D. or Housing Bore	3.4651IN 88.0135MM	3.4651IN 88.0135MM
Component No.	1.1430IN 29.0322MM	1.4700IN 37.3380MM

Complete Set of 8

MS-1717P-75

Specifications:

Component No.	MB-3110P	MB-3109P(F)
Positions	1-2-3-4-5-7	6
Material	TM-112	TM-112
Min. Std. Shaft Diameter	3.2674IN 82.9920MM	3.2674IN 82.9920MM
Max. Std. Shaft Diameter	3.2682IN 83.0123MM	3.2682IN 83.0123MM
Min. Vert. Oil Clearance	0.0017IN 0.0432MM	0.0017IN 0.0432MM
Max. Vert. Oil Clearance	0.0047IN 0.1194MM	0.0047IN 0.1194MM
Max. Wall	0.0970IN 2.4638MM	0.0970IN 2.4638MM
Min. Brg. O.D. or Housing Bore	3.4637IN 87.9780MM	3.4637IN 87.9780MM
Max. Brg. O.D. or Housing Bore	3.4651IN 88.0135MM	3.4651IN 88.0135MM
Component No.	1.1430IN 29.0322MM	1.4700IN 37.3380MM

Complete Set of 8

More Information

More Information
Truck Applications	Dodge 1st Generation 1988-93, Dodge 12V 1994-98, Dodge 24V 1998.5-02, Dodge 24V CR 2003-07, Dodge 6.7 2007-09, Dodge 6.7L 2010-12, Dodge 6.7L 2013-2018, Dodge 6.7L 2019 To 2024
SKU	MS-2328P
Manufacturer	Mahle
Weight	2.00
