Rod Bearings - RACE Series | 01-11 Chevy 6.6L Duramax

  • Home
  • Rod Bearings - RACE Series | 01-11 Chevy 6.6L Duramax

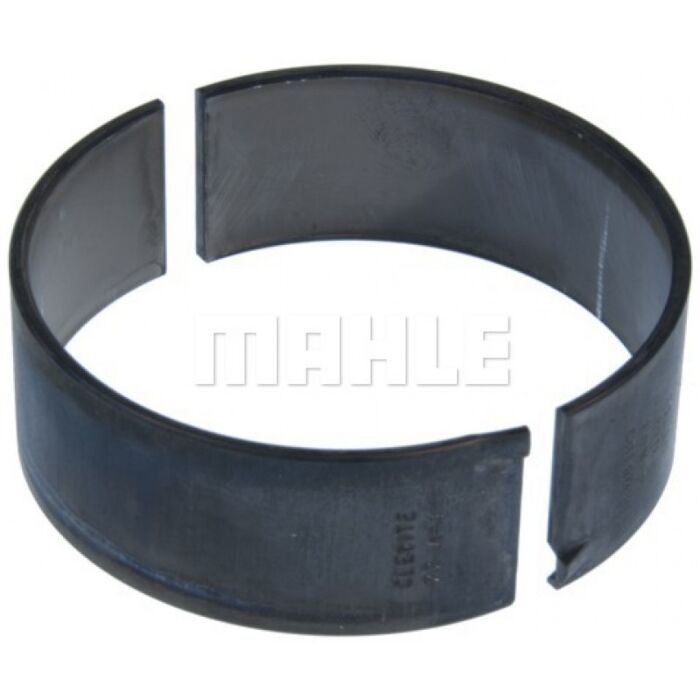

main product photo
  • FREE Worldwide Shipping
    Fast & free shipping

    On all orders over $99.00

  • Guaranteed Customer Satisfaction
    Guaranteed Customer Satisfaction

    Full Customer Support

  • SUPPORT 24/7
    Low Price Guarantee

    Always Low Prices

  • Safe shopping guarantee
    Secure Payment

    Safe shopping guarantee

Prev
Rod Bearings - RACE series | 89-18 Dodge 5.9L & 6.7L Cummins

Rod Bearings - RACE series | 89-18 Dodge 5.9L & 6.7L Cummins

Special Price $294.95 Regular Price $312.00
Next
Mahle Clevite CB-1953AP A-Series Rod Bearing (Standard)

Mahle Clevite CB-1953AP A-Series Rod Bearing (Standard)

Special Price $294.95 Regular Price $312.00
In stock
SKU:
CB-1805H
Special Price $294.95 Regular Price $312.00
Rod Bearings - RACE Series | 01-11 Chevy 6.6L Duramax
Add to Wish List Add to Compare
Email

Guaranteed Safe Checkout

Visa, MasterCard, American Express, and Stripe

CB-1805H-STD

Specifications:

Material TM-77
Min. Std. Shaft Diameter 2.4764"
62.9006MM
Max. Std. Shaft Diameter 2.4772"
62.9209MM
Min. Vert. Oil Clearance .0010"
0.0254MM
Max. Vert. Oil Clearance .0034"
0.0864MM
Max. Wall .0794"
2.0168MM
Min. Brg. O.D. or Housing Bore 2.6372"
66.9849MM
Max. Brg. O.D. or Housing Bore 2.6378"
67.0001MM
Max. Length .9340"
23.7236MM

Complete Set Of 8

CB-1805HX

Specifications:

Material TM-77
Min. Std. Shaft Diameter 2.4764"
62.9006MM
Max. Std. Shaft Diameter 2.4772"
62.9209MM
Min. Vert. Oil Clearance .0020"
0.0508MM
Max. Vert. Oil Clearance .0044"
0.1118MM
Max. Wall .0789"
2.0041MM
Min. Brg. O.D. or Housing Bore 2.6372"
66.9849MM
Max. Brg. O.D. or Housing Bore 2.6378"
67.0001MM
Max. Length .9340"
23.7236MM

Complete Set Of 8

CB-1805H-026

Specifications:

Material TM-77
Min. Std. Shaft Diameter 2.4764"
62.9006MM
Max. Std. Shaft Diameter 2.4772"
62.9209MM
Min. Vert. Oil Clearance .0010"
0.0254MM
Max. Vert. Oil Clearance .0034"
0.0864MM
Max. Wall .0794"
2.0168MM
Min. Brg. O.D. or Housing Bore 2.6372"
66.9849MM
Max. Brg. O.D. or Housing Bore 2.6378"
67.0001MM
Max. Length .9340"
23.7236MM

Complete Set Of 8

CB-1805H-25

Specifications:

Material TM-77
Min. Std. Shaft Diameter 2.4764"
62.9006MM
Max. Std. Shaft Diameter 2.4772"
62.9209MM
Min. Vert. Oil Clearance .0010"
0.0254MM
Max. Vert. Oil Clearance .0034"
0.0864MM
Max. Wall .0794"
2.0168MM
Min. Brg. O.D. or Housing Bore 2.6372"
66.9849MM
Max. Brg. O.D. or Housing Bore 2.6378"
67.0001MM
Max. Length .9340"
23.7236MM

Complete Set Of 8

More Information
Truck Applications Chevy/GMC Duramax 2001-04 LB7, Chevy/GMC Duramax 2004.5-05 LLY, Chevy/GMC Duramax 2006-07 LBZ, Chevy/GMC Duramax 2007.5-10 LMM, Chevy/GMC Duramax 2011-17 LML/LGH
SKU CB-1805H
Manufacturer Mahle
Weight 2.00
