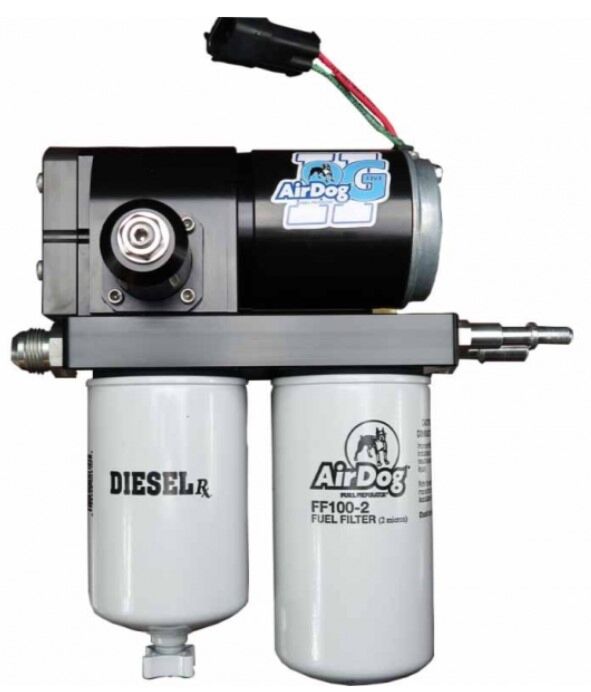

AirDog II-5G DF-100-5G fuel system for the 2011-2014 Chevy/GMC Duramax 6.6L Diesel. This diesel lift pump mounts to the frame jig in front of the fuel tank for a clean looking installation. The suction side hooks up to the factory suction fitting in the fuel module. The pressure side connects directly to the factory injection pump feed line on the frame. The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This system is one of our easiest installations. Our Duramax kits usually see the largest performance gains as these trucks do not come with a lift pump from the factory. This is a 100GPH (Gallon Per Hour) lift pump system for stock fuel system trucks.
| Provides Better Fuel Flow At Pressure | 4G Motor Technology Provides Reliable & Quiet Operation |
| Low Flow Return For Reduced Aeration | Integrated Diaphragm Fuel Pressure Regulator |
| Demand Flow Design Recirculates Fuel Back Through The Filter Base | 12-Gauge Wiring |
| Larger Ports Over Previous Pumps | Lifetime Limited Warranty |
| Improves Engine Efficiency | 100 GPH Fuel Pump |
| All Necessary Wiring, Plumbing, & Installation Hardware Included |
| YEAR | MAKE - ENGINE SERIES |
|---|---|
| 2011 | Chevy/GMC 6.6L LML Duramax |
| 2012 | Chevy/GMC 6.6L LML Duramax |
| 2013 | Chevy/GMC 6.6L LML Duramax |
| 2014 | Chevy/GMC 6.6L LML Duramax |
| Manufacturer Part Number | A7SPBC260 |
| GTIN | 813094015603 |
| Manufacturer Name | AirDog by PureFlow |
| Vehicle Fitment | 2011-2014 GM 6.6L Duramax LML (Stock To Moderate) |
| Shipping Weight | 21.00 lb. |
| Shipping Length | 19 in. |
| Shipping Width | 13 in. |
| Shipping Height | 7 in. |
| Fuel Type | Diesel |
| Warranty Info | Limited Lifetime |
| Prop 65 | WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov |
| Cross Reference # | A6SPBC260 |
| Internal | L2R0 |
| AirDog A7SPBC260 Installation Manual | Click to View |
In case you missed us at the shows last season, here is a short video where one of our techs, Brandon, explains how the AirDog閹 II-4G separates air out of diesel fuel and how that benefits you. We are using a calibrated test fluid that has the same viscosity as diesel fuel and the AirDog閹 II-4G is being run at alternator voltage or 13.8V.
Today we install an AirDog II DF-165 4G on a 2011 GMC Duramax. We will do a full unboxing of the kit part number A6SABC410. Then get right into installing the pump on the truck. This is by far the easiest installation you can do on a truck. A system like this will provide a positive pressure to the CP4 injection system while removing air, and filtering down to 2 micron! Some of the benefits include increased throttle response, 1-2MPG increase, and added protection to the injection system parts. Learn more about our products by clicking the link below.
Pure diesel fuel is delivered to the injection system.
| Truck Applications | Chevy/GMC Duramax 2011-17 LML/LGH |
|---|---|
| SKU | A7SPBC260 |
| Manufacturer | AirDog |
| Weight | 21.00 |
