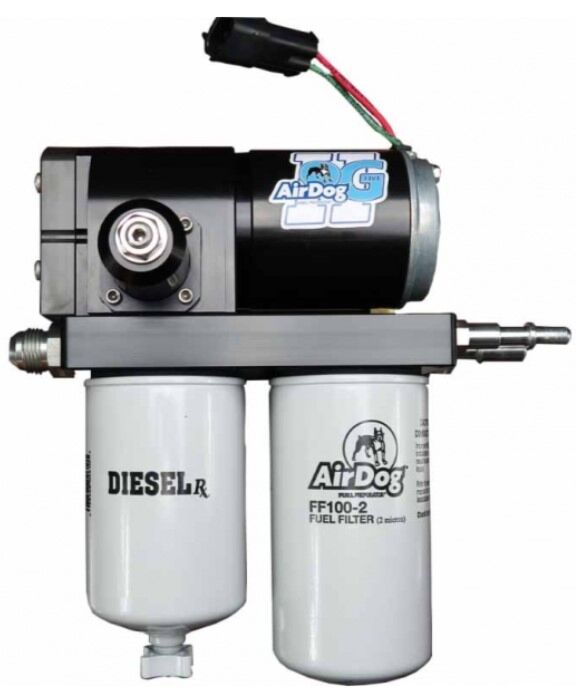

AirDog II-5G DF-220-5G fuel system for the 2019 to 2020 RAM Cummins. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A 5/8" draw straw is used to pull fuel from the tank. This will bypass the factory in-tank lift pump. The pressure side connects directly into the side of the factory fuel filter housing. The AirDog Air/Vapor return is sent back to the tank through the factory 3/8” suction line once the module is modified. This is a 220GPH (Gallon Per Hour) lift pump system for highly modified trucks.
| 220 GPH Pump | Diaphragm Fuel Pressure Regulator |
| 4 Bearing Motor with Intermediate Shaft | Demand Flow Design |
| Larger Ports Over Previous Pumps | Reduced Aeration From Low Flow Return |
| YEAR | MAKE - ENGINE SERIES |
|---|---|
| 2019 | Dodge/RAM - 6.7L 24V Cummins |
| 2020 | Dodge/RAM - 6.7L 24V Cummins |
| 2021 | Dodge/RAM - 6.7L 24V Cummins |
| 2022 | Dodge/RAM - 6.7L 24V Cummins |
| 2023 | Dodge/RAM - 6.7L 24V Cummins |
| 2024 | Dodge/RAM - 6.7L 24V Cummins |
| Manufacturer Part Number | A7SABD530 |
| GTIN | 813094011308 |
| Manufacturer Name | AirDog by PureFlow |
| Vehicle Fitment | 2019-2023 Ram 6.7L Diesel (Extreme Applications) |
| Shipping Weight | 27.00 lb. |
| Shipping Length | 19 in. |
| Shipping Width | 13 in. |
| Shipping Height | 7 in. |
| Fuel Type | Diesel |
| Warranty Info | Limited Lifetime |
| Prop 65 | WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov |
| Internal | L0R1 |
| AirDog A7SABD530 Installation Manual | Click to View |
This video describes the AirDog閹 lifetime warranty registration process. You have 30 days from the purchase date to fill out the warranty card and send it in. Be sure to keep a copy of a receipt, invoice, or packing slip to prove you are the original purchaser for your records.
Pure diesel fuel is delivered to the injection system.
| Truck Applications | Dodge 6.7L 2019 To 2024 |
|---|---|
| SKU | A7SABD530 |
| Manufacturer | AirDog |
| Weight | 27.00 |
