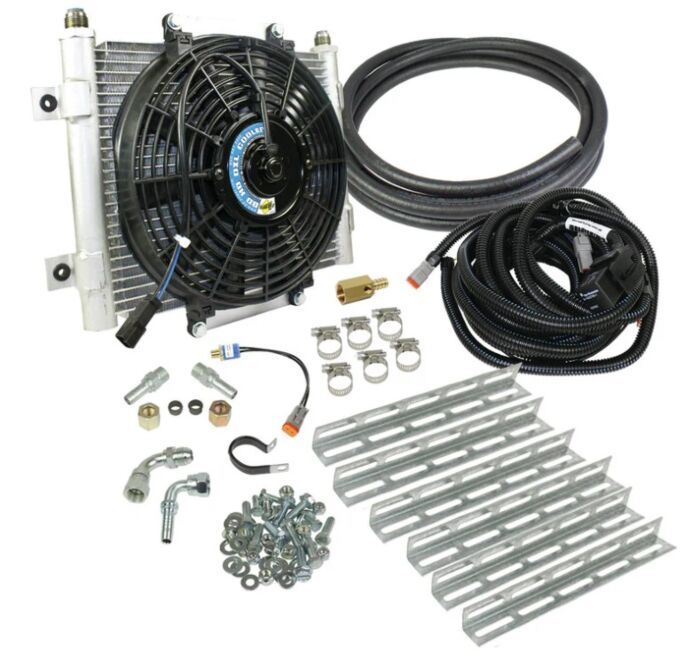

Xtrude Transmission Cooler with Fan - Complete Kit for 3/8in Lines
Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.
Note
Intended to be used in conjunction with factory Transmission coolers and not as stand-alone units
BD Diesel - 1030606-3/8 - Features
22% more cooling over other designs
33,930 BTU/HR and in excess of 30,000 GVW!
200 Micro Extruded passages
Kits complete with all fittings, clamps, hoses and hardware
Large surface area to transfer heat for external air flow cooling
Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
Turbulent oil flow design promotes a more complete cooling
The pre-wired loomed harness with fuse and relay comes with plug-in connectors
Large 5/8-inch ports prevents inlet/outlet restriction
Chevy 1999-2000 4L80E - 3/8-inch Cooler Lines
Furnace brazed rails have been tested to 300psi of pressure
Ford 1999-2003 4R100 - 3/8-inch Cooler Lines
Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
BD Diesel - 1030606-3/8 - Vehicle Fitment
YEAR
MAKE - ENGINE SERIES
1999
Chevrolet - 4.3 C1500/5.0 C1500/5.7 C1500/5.3 C2500/5.0 K1500/5.7 K1500, Ford - 4.6 F-250/5.4 F-250
Ford - 4.2 F-150/Ford - 4.6 F-150/Ford - 5.4 F-150
1999-2003
Ford - 5.4 F-250 Super Duty/Ford - 6.8 F-250 Super Duty/Ford - 7.3 F-250 Super Duty/Ford - 5.4 F-350 Super Duty/Ford - 6.8 F-350 Super Duty/Ford - 7.3 F-350 Super Duty
2003
Ford - 6.0 F-250 Super Duty/Ford - 6.0 F-350 Super Duty
BD Diesel - 1030606-3/8 - Specifications
Manufacturer's Part Number
1030606-3/8
Manufacturer Name
BD Diesel Performance
Weight (Lbs)
17.4
Length
22
Width
15.6
Height
10.8
UPC
990011403405
Country of Origin
CN
HTC
8708998180
Hazmat
N
Prop 65 Cancer
Y
Prop 65 Reproductive
Y
Prop 65 Labeling
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov
Install Time
3 Hours 30 Minutes
Parts Warranty
12-Months, 24,000 miles
Emissions
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
