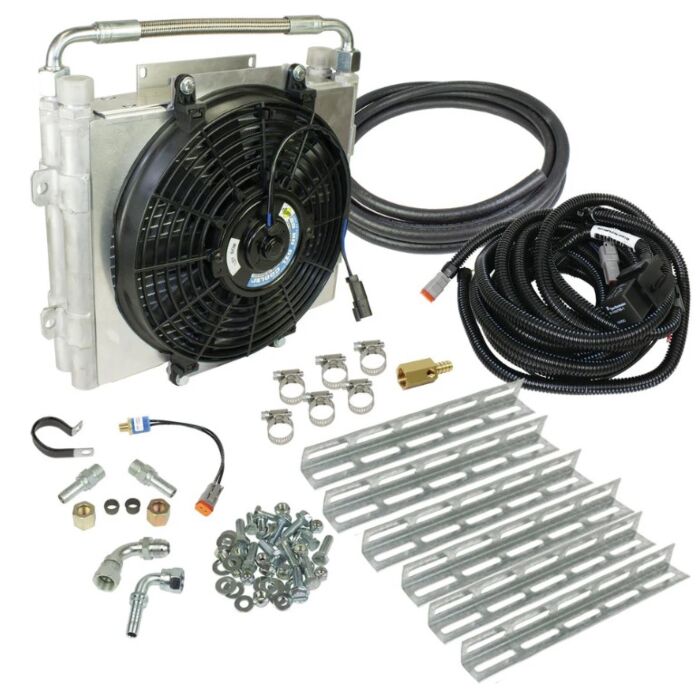

Xtrude Transmission Cooler with Fan - Double Stacked Complete Kit - 5/8in Lines
HOT Transmission oil has to be COOLED to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 36% better temperature drop than BD's standard single core kit. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.
Note
Intended to be used in conjunction with factory Transmission coolers and not as stand-alone units
BD Diesel - 1030606-DS-58 - Features
Large surface area to transfer heat for external air flow cooling
Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
Turbulent oil flow design promotes a more complete cooling
The pre-wired loomed harness with fuse and relay comes with plug-in connectors
Large 5/8-inch ports prevents inlet/outlet restriction
Chevy Allison 1000 - 5/8-inch Cooler Lines
Furnace brazed rails have been tested to 300psi of pressure
Double stacked cores deliver over 40,000 BTU/HR of cooling
Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
Over 350% temperature drop versus the factory system
Kits complete with all fittings, clamps, hoses and hardware
136% better temperature drop than XTRUDED single core kit
BD Diesel - 1030606-DS-58 - Vehicle Fitment
YEAR
MAKE - ENGINE SERIES
2001-2016
Chevrolet - 6.0 Silverado 2500 HD
2001-2016
Chevrolet - 6.6 Silverado 2500 HD
2001-2006
Chevrolet - 8.1 Silverado 2500 HD
2001-2006
Chevrolet - 6.0 Silverado 3500
2001-2006
Chevrolet - 6.6 Silverado 3500
2001-2006
Chevrolet - 8.1 Silverado 3500
2007
Chevrolet - 6.0 Silverado 3500 Classic
2007
Chevrolet - 6.6 Silverado 3500 Classic
2007-2016
Chevrolet - 6.0 Silverado 3500 HD
2007-2016
Chevrolet - 6.6 Silverado 3500 HD
2001-2016
GMC - 6.0 Sierra 2500 HD
2001-2016
GMC - 6.6 Sierra 2500 HD
BD Diesel - 1030606-DS-58 - Specifications
Manufacturer's Part Number
1030606-DS-58
Manufacturer Name
BD Diesel Performance
Weight (Lbs)
23
Length
23
Width
16
Height
11
UPC
990011403726
Country of Origin
CN
HTC
8708998180
Hazmat
N
Prop 65 Cancer
Y
Prop 65 Reproductive
Y
Prop 65 Labeling
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov
Install Time
3 Hours 30 Minutes
Parts Warranty
12-Months, 24,000 miles
Emissions
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
