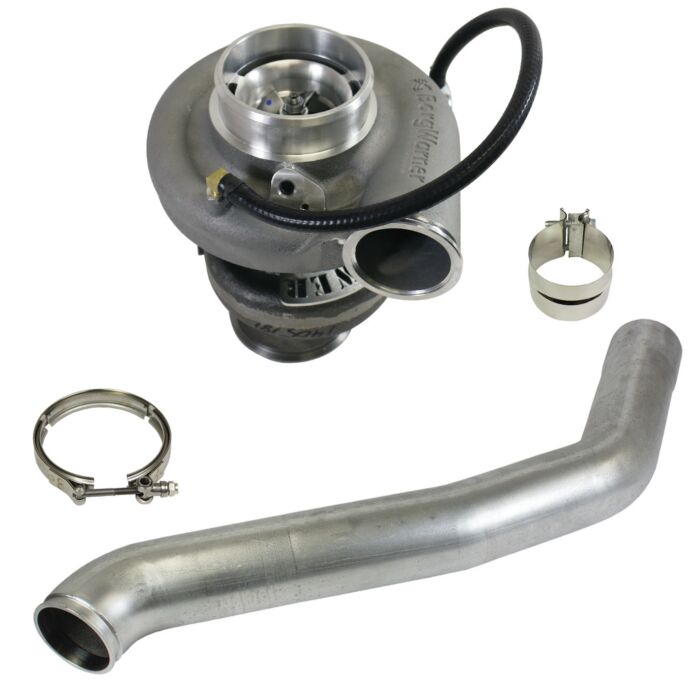

BD R600 Turbo Kit | S366/80 0.80A/R T3 Exhaust Flange
Kit Details:
| The SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing | Kit comes with downpipe, V-band clamp, band clamp |
| Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels | Comp Wheel: 64.5mm 2.54in |
| The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds | Turbine Wheel: 80mm 3.15in |
| BD exclusive feature of a heavy sprung waste-gated T3 turbine housing that mounts onto stock exhaust Manifolds | A/R Ratio: 0.80 |
| BD's HD Waste gate and bracket holds boost and prevents over speed damage | Flow: 82 Lb/min |
| Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning | Approximate rated 600hp (depending on truck configuration) |
| YEAR | MAKE - ENGINE SERIES |
|---|---|
| 1994-2002 | Dodge - 5.9 Ram 2500 |
| 1994-2002 | Dodge - 5.9 Ram 3500 |
| Manufacturer's Part Number | 1045250 |
| Manufacturer Name | BD Diesel Performance |
| Weight (Lbs) | 53 |
| Length | 64 |
| Width | 14 |
| Height | 13 |
| UPC | 990011405539 |
| Country of Origin | CA |
| HTC | 8414800500 |
| Hazmat | N |
| Prop 65 Cancer | Y |
| Prop 65 Reproductive | Y |
| Prop 65 Labeling | WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Install Time | 4 Hours |
| Parts Warranty | 12-Months, 12,000 miles |
| Emissions | This product has met EPA's reasonable basis requirements and is legal for sale and use within the jurisdiction of the federal EPA. (EMS:2) |
| General Turbocharger Instructions | Click to View |
| Limited Warranty Statement Card | Click to View |
| Truck Applications | Dodge 12V 1994-98, Dodge 24V 1998.5-02 |
|---|---|
| SKU | 1045250 |
| Manufacturer | BD Diesel Performance |
| Weight | 53.00 |
