Super B Special SX-E S363 Turbo Kit - Dodge 1994-2002 5.9L
All kits come with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. A BD exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 Manifolds.
Note
Not for sale on licensed California vehicles Turbo mount exhaust brake cannot be installed with this kit - use remote mount exhaust brake
BD Diesel - 1045257 - Features
BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability

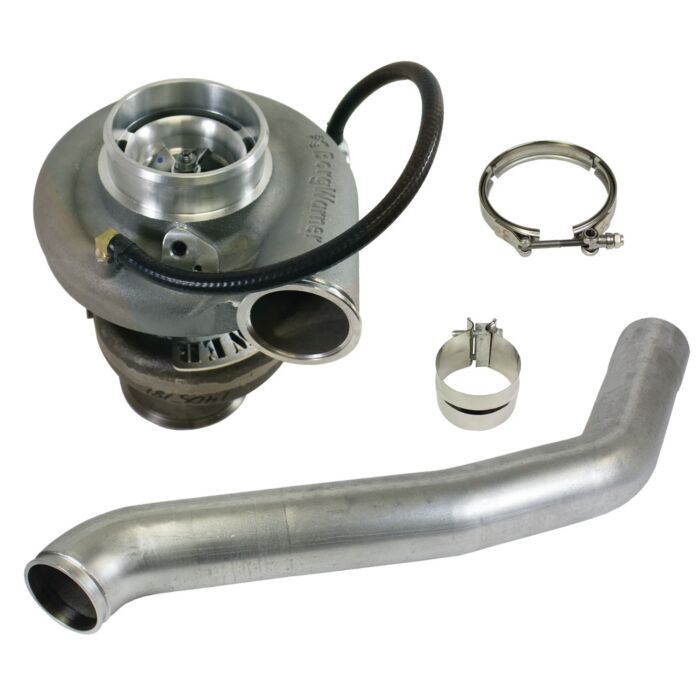

Kit comes with downpipe, V-band clamp, band clamp
The SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing
Comp Wheel: 63mm 2.48in
Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
Turbine Wheel: 80mm 3.15in
The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds
A/R Ratio: 0.80
BD exclusive feature of a heavy sprung waste-gated T3 turbine housing that mounts onto stock exhaust Manifolds
Flow: 79 Lb/min
BD's HD Waste gate and bracket holds boost and prevents over speed damage
Approximate rated 550hp (depending on truck configuration)
Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning
BD Diesel - 1045257 - Vehicle Fitment
YEAR
MAKE - ENGINE SERIES
1994-2002
Dodge - 5.9 Ram 2500
1994-2002
Dodge - 5.9 Ram 3500
BD Diesel - 1045257 - Specifications
Manufacturer's Part Number
1045257
Manufacturer Name
BD Diesel Performance
Weight (Lbs)
54
Length
64
Width
14
Height
14
UPC
990011405614
Country of Origin
CA
HTC
8414800500
Hazmat
N
Prop 65 Cancer
Y
Prop 65 Reproductive
Y
Prop 65 Labeling
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov
Install Time
4 Hours
Parts Warranty
12-Months, 12,000 miles
Emissions
This product has met EPA's reasonable basis requirements and is legal for sale and use within the jurisdiction of the federal EPA. (EMS:2)
