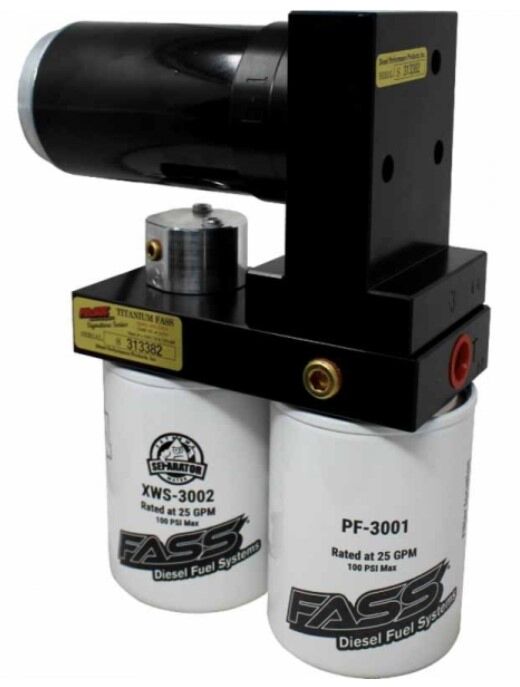

FASS Fuel TSC15250F220G Titanium Signature Series 220GPH Fuel System
The Titanium Signature Series diesel fuel system was engineered by FASS Fuel Systems to be the top performing, longest lasting and most reliable aftermarket filtration system in the diesel industry. Rated at 220 gallons per hour and backed by our limited lifetime warranty the Titanium Signature Series System is capable of supporting your GM Duramax 6.6L diesel engine with enough fuel for multiple fueling system upgrades. A Titanium Signature Series System also offers advanced filtration benefits that will help protect your Duramax闁炽儲鐛 injection Systems, effectively extending the life of your injection system and injectors. Benefits include an improved filtration rating of 2 Microns, a built in water separation filter and FASS Fuel Systems patented air/vapor removal process. Duramax diesel engines are known for having injector failure issues; this can be caused by several different factors and FASS Filtration Systems is designed to eliminate those that are fuel related.
FASS Whisper Technology (FWT)
Was engineered to meet the stringent demands of today's quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System s high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Titanium Signature Series FASS Diesel Fuel System to a whisper while at the same time increasing fuel flow rates.
Performance Radius Cuts (PRC)
Are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and to prevent eddy currents from forming within the corner of a 90-degree sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
Mass Flow Return (MFR)
Technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that s not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly Polished (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help ensure cold weather operations!
Bolt On Bracket Mounts
Old mounting styles required drilling or welding when mounting your new System. This has now been simplified with our new bolt on brackets that utilize your Ford Super Duty factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series System takes only minutes and all brackets are made from machined steel for superior support and strength.
FASS Fuel Systems - TSC15250F220G - Features
Bolt On Bracket Installation
1/2 Inch Fuel Lines and Ports
Preset 70-75 PSI Fuel Pressure
Fuel Mileage Improvement
Complete Replacement System
Improved Fuel Volume Delivery
220 Gallons Per Hour Flow Rating
Smoother Engine Idle
Removes Water, Air and Debris From Diesel Fuel
Optional Electric Heater Ports
2 Micron Filtration Rating
Optional Fuel Pressure Gauge Port
Protects and Extends The Life Of Your Injectors
1,000,000 Mile Motor
Improved Cold Weather Starts
30,000 Mile Filter Life Expectancy
FASS Fuel Systems - TSC15250F220G - Vehicle Fitment
YEAR
MAKE - ENGINE SERIES
2020
Chevy/GMC - 6.6L L5P Duramax
2021
Chevy/GMC - 6.6L L5P Duramax
2022
Chevy/GMC - 6.6L L5P Duramax
FASS Fuel Systems - TSC15250F220G - Specifications
NUMBERS DON'T LIE: The Test Results... | FASS Diesel Fuel Systems
NUMBERS DON'T LIE: The Test Results... | FASS Diesel Fuel Systems
We spent over $14,000 on 3rd-party testing to highlight the difference in fuel purity between FASS fuel filters and the competition.
The laboratory results showed a DRASTIC difference in water separation between FASS filters and our competition's offerings. With vastly more water getting through, our competitor's filters simply don't offer the same level of protection for your injection system as FASS.
