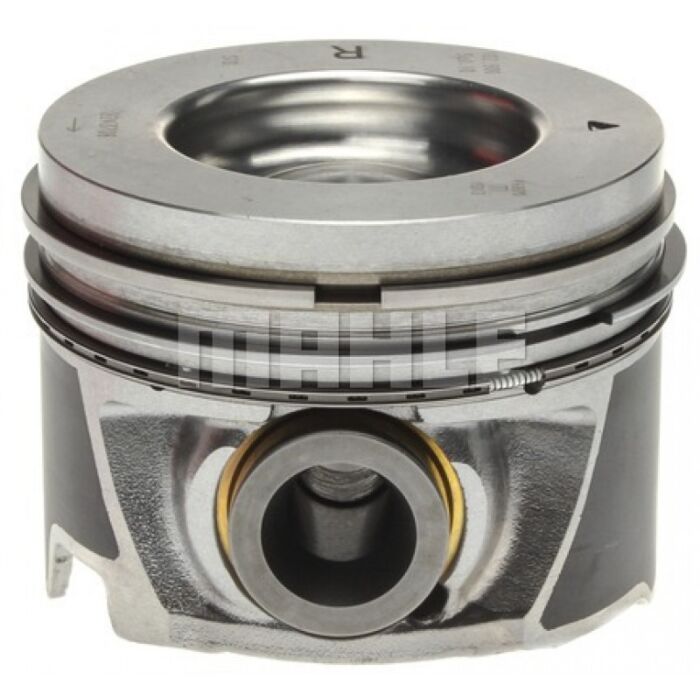

main product photo
  • FREE Worldwide Shipping
    Fast & free shipping

    On all orders over $99.00

  • Guaranteed Customer Satisfaction
    Guaranteed Customer Satisfaction

    Full Customer Support

  • SUPPORT 24/7
    Low Price Guarantee

    Always Low Prices

  • Safe shopping guarantee
    Secure Payment

    Safe shopping guarantee

Prev
Dodge Cummins Pistons

Dodge Cummins Pistons

Special Price $1,135.00 Regular Price $1,187.00
Next
Ford Powerstroke Pistons With Rings & Pins

Ford Powerstroke Pistons With Rings & Pins

Special Price $1,135.00 Regular Price $1,187.00
In stock
SKU:
6.6 Duramax Pistons With Rings
Special Price $1,135.00 Regular Price $1,187.00

6.6L Duramax Pistons With Rings

Add to Wish List Add to Compare
Email

Guaranteed Safe Checkout

Visa, MasterCard, American Express, and Stripe

224-3451WR-STD

  • Material: Aluminum
  • Casting Number: 103V12
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 4.055" 103.00MM
  • Piston Skirt Clearance: 0.0018IN
  • Measure Skirt Clearance At: 0.670" from the bottom of skirt
  • Piston Pin Diameter: 1.358"34.5MM
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.598IN
  • Recess Volume: 38.06
  • Compression Height: Standard
  • Compression Distance: 1.961" 49.82MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.00MM

224-3451WR-020

  • Material: Aluminum
  • Casting Number: 103V12
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 4.055" 103.00MM
  • Piston Skirt Clearance: 0.0018IN
  • Measure Skirt Clearance At: 0.670" from the bottom of skirt
  • Piston Pin Diameter: 1.358"34.5MM
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.598IN
  • Recess Volume: 38.06
  • Compression Height: Standard
  • Compression Distance: 1.961" 49.82MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.00MM

224-3451WR-040

  • Material: Aluminum
  • Casting Number: 103V12
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 4.055" 103.00MM
  • Piston Skirt Clearance: 0.0018IN
  • Measure Skirt Clearance At: 0.670" from the bottom of skirt
  • Piston Pin Diameter: 1.358"34.5MM
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.598IN
  • Recess Volume: 38.06
  • Compression Height: Standard
  • Compression Distance: 1.961" 49.82MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.00MM

224-3452WR-STD

  • Material: Aluminum
  • Casting Number: 103V12
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 4.055" 103.00MM
  • Piston Skirt Clearance: 0.0018IN
  • Measure Skirt Clearance At: 0.670" from the bottom of skirt
  • Piston Pin Diameter: 1.358"34.5MM
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.598IN
  • Recess Volume: 38.06
  • Compression Height: Standard
  • Compression Distance: 1.961" 49.82MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.00MM

224-3452WR-020

  • Material: Aluminum
  • Casting Number: 103V12
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 4.055" 103.00MM
  • Piston Skirt Clearance: 0.0018IN
  • Measure Skirt Clearance At: 0.670" from the bottom of skirt
  • Piston Pin Diameter: 1.358"34.5MM
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.598IN
  • Recess Volume: 38.06
  • Compression Height: Standard
  • Compression Distance: 1.961" 49.82MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.00MM

224-3452WR-040

  • Material: Aluminum
  • Casting Number: 103V12
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 4.055" 103.00MM
  • Piston Skirt Clearance: 0.0018IN
  • Measure Skirt Clearance At: 0.670" from the bottom of skirt
  • Piston Pin Diameter: 1.358"34.5MM
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.598IN
  • Recess Volume: 38.06
  • Compression Height: Standard
  • Compression Distance: 1.961" 49.82MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.00MM

224-3708WR-STD

  • Material: Aluminum
  • Bore Diameter: 4.055" 103.00MM
  • Piston Length: 3.1417" 79.8MM
  • Piston Skirt Clearance: 0.0039" 0.0991MM
  • Measure Skirt Clearance At: 0.551" from the bottom of skirt
  • Piston Pin Diameter: 1.3386" 34.5MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.6142" 15.6MM
  • Recess Diameter: 2.5472" 64.7MM
  • Compression Height: Standard
  • Compression Distance: 1.961" 49.8MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.00MM

224-3708WR-020

  • Material: Aluminum
  • Bore Diameter: 4.055" 103.00MM
  • Piston Length: 3.1417" 79.8MM
  • Piston Skirt Clearance: 0.0039" 0.0991MM
  • Measure Skirt Clearance At: 0.551" from the bottom of skirt
  • Piston Pin Diameter: 1.3386" 34.5MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.6142" 15.6MM
  • Recess Diameter: 2.5472" 64.7MM
  • Compression Height: Standard
  • Compression Distance: 1.961" 49.8MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.00MM

224-3708WR-040

  • Material: Aluminum
  • Bore Diameter: 4.055" 103.00MM
  • Piston Length: 3.1417" 79.8MM
  • Piston Skirt Clearance: 0.0039" 0.0991MM
  • Measure Skirt Clearance At: 0.551" from the bottom of skirt
  • Piston Pin Diameter: 1.3386" 34.5MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.6142" 15.6MM
  • Recess Diameter: 2.5472" 64.7MM
  • Compression Height: Standard
  • Compression Distance: 1.961" 49.8MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.00MM

224-3709WR-STD

  • Material: Aluminum
  • Bore Diameter: 4.055" 103.00MM
  • Piston Length: 3.1417" 79.8MM
  • Piston Skirt Clearance: 0.0039" 0.0991MM
  • Measure Skirt Clearance At: 0.551" from the bottom of skirt
  • Piston Pin Diameter: 1.3386IN
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 15.6MM
  • Recess Diameter: 59.8MM
  • Compression Height: Standard
  • Compression Distance: 1.961IN
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.00MM

224-3709WR-020

  • Material: Aluminum
  • Bore Diameter: 4.055" 103.00MM
  • Piston Length: 3.1417" 79.8MM
  • Piston Skirt Clearance: 0.0039" 0.0991MM
  • Measure Skirt Clearance At: 0.551" from the bottom of skirt
  • Piston Pin Diameter: 1.3386IN
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 15.6MM
  • Recess Diameter: 59.8MM
  • Compression Height: Standard
  • Compression Distance: 1.961IN
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.00MM

224-3709WR-040

  • Material: Aluminum
  • Bore Diameter: 4.055" 103.00MM
  • Piston Length: 3.1417" 79.8MM
  • Piston Skirt Clearance: 0.0039" 0.0991MM
  • Measure Skirt Clearance At: 0.551" from the bottom of skirt
  • Piston Pin Diameter: 1.3386IN
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Offset
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 15.6MM
  • Recess Diameter: 59.8MM
  • Compression Height: Standard
  • Compression Distance: 1.961IN
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.00MM
More Information
Truck Applications Chevy/GMC Duramax 2001-04 LB7, Chevy/GMC Duramax 2004.5-05 LLY, Chevy/GMC Duramax 2006-07 LBZ, Chevy/GMC Duramax 2007.5-10 LMM
SKU 6.6 Duramax Pistons With Rings
Manufacturer Mahle
Weight 20.00
