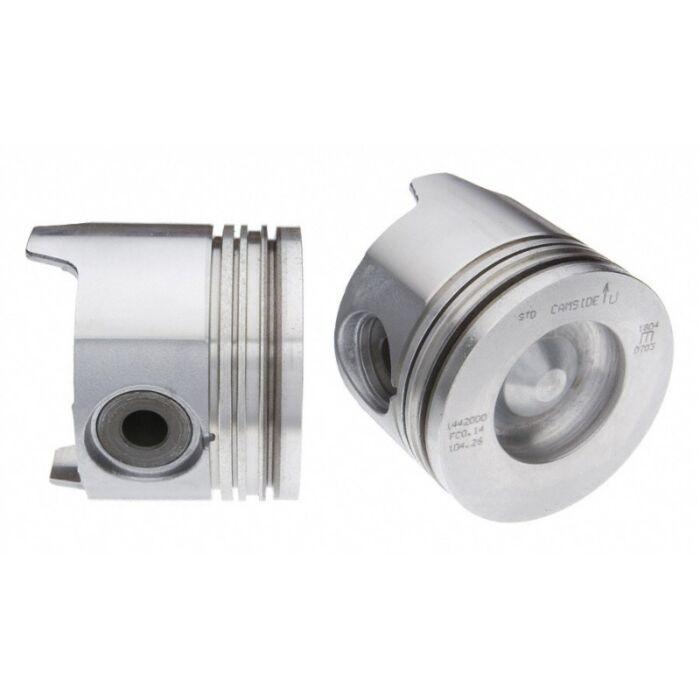

main product photo
  • FREE Worldwide Shipping
    Fast & free shipping

    On all orders over $99.00

  • Guaranteed Customer Satisfaction
    Guaranteed Customer Satisfaction

    Full Customer Support

  • SUPPORT 24/7
    Low Price Guarantee

    Always Low Prices

  • Safe shopping guarantee
    Secure Payment

    Safe shopping guarantee

Prev
Duramax Pistons With Rings & Pins

Duramax Pistons With Rings & Pins

Special Price $912.00 Regular Price $975.00
Next
Mahle Clevite 224-3525WR-STD Piston with Rings (Standard)

Mahle Clevite 224-3525WR-STD Piston with Rings (Standard)

Special Price $912.00 Regular Price $975.00
In stock
SKU:
Powerstroke Pistons With Rings
Special Price $912.00 Regular Price $975.00
Piston Kits | Ford
Add to Wish List Add to Compare
Email

Guaranteed Safe Checkout

Visa, MasterCard, American Express, and Stripe

224-3163WR-STD

Specifications

  • Related Part Number 1: 14420N
  • Material: Aluminum
  • Casting Number: 104L34
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 4.110" 104.40MM
  • Piston Length: 3.789IN
  • Piston Skirt Clearance: .055IN
  • Measure Skirt Clearance At: 0.850" from the bottom of skirt
  • Piston Pin Diameter: 1.3085" 33.2MM
  • Head Type Description: Reentrant Bowl
  • Valve Reliefs: No
  • Recess Depth: 0.673IN
  • Recess Diameter: 2.260IN
  • Recess Volume: 39.59
  • Compression Height: Standard
  • Compression Distance: 2.142" 54.4MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring

224-3163WR-010

Specifications

  • Related Part Number 1: 14420N
  • Material: Aluminum
  • Casting Number: 104L34
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 4.110" 104.40MM
  • Piston Length: 3.789IN
  • Piston Skirt Clearance: .055IN
  • Measure Skirt Clearance At: 0.850" from the bottom of skirt
  • Piston Pin Diameter: 1.3085" 33.2MM
  • Head Type Description: Reentrant Bowl
  • Valve Reliefs: No
  • Recess Depth: 0.673IN
  • Recess Diameter: 2.260IN
  • Recess Volume: 39.59
  • Compression Height: Standard
  • Compression Distance: 2.142" 54.4MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring

224-3163WR-020

Specifications

  • Related Part Number 1: 14420N
  • Material: Aluminum
  • Casting Number: 104L34
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 4.110" 104.40MM
  • Piston Length: 3.789IN
  • Piston Skirt Clearance: .055IN
  • Measure Skirt Clearance At: 0.850" from the bottom of skirt
  • Piston Pin Diameter: 1.3085" 33.2MM
  • Head Type Description: Reentrant Bowl
  • Valve Reliefs: No
  • Recess Depth: 0.673IN
  • Recess Diameter: 2.260IN
  • Recess Volume: 39.59
  • Compression Height: Standard
  • Compression Distance: 2.142" 54.4MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring

224-3163WR-030

Specifications

  • Related Part Number 1: 14420N
  • Material: Aluminum
  • Casting Number: 104L34
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 4.110" 104.40MM
  • Piston Length: 3.789IN
  • Piston Skirt Clearance: .055IN
  • Measure Skirt Clearance At: 0.850" from the bottom of skirt
  • Piston Pin Diameter: 1.3085" 33.2MM
  • Head Type Description: Reentrant Bowl
  • Valve Reliefs: No
  • Recess Depth: 0.673IN
  • Recess Diameter: 2.260IN
  • Recess Volume: 39.59
  • Compression Height: Standard
  • Compression Distance: 2.142" 54.4MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring

224-3163WR-040

Specifications

  • Related Part Number 1: 14420N
  • Material: Aluminum
  • Casting Number: 104L34
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 4.110" 104.40MM
  • Piston Length: 3.789IN
  • Piston Skirt Clearance: .055IN
  • Measure Skirt Clearance At: 0.850" from the bottom of skirt
  • Piston Pin Diameter: 1.3085" 33.2MM
  • Head Type Description: Reentrant Bowl
  • Valve Reliefs: No
  • Recess Depth: 0.673IN
  • Recess Diameter: 2.260IN
  • Recess Volume: 39.59
  • Compression Height: Standard
  • Compression Distance: 2.142" 54.4MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring

224-3503WR-STD

Specifications

  • Related Part Number 1: 41940
  • Material: Aluminum
  • Casting Number: 95L102A1
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 3.740" 95.00MM
  • Piston Length: 85.82MM
  • Piston Skirt Clearance: 0.0036IN
  • Measure Skirt Clearance At: 0.579" from the bottom of skirt
  • Piston Pin Diameter: 1.339" 34MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Center
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.665IN
  • Recess Diameter: 2.0905IN
  • Recess Volume: 31.89
  • Compression Height: Standard
  • Compression Distance: 2.059" 52.29MM
  • Compression Ring Groove 1: 2.30MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring. Coated skirts.

224-3503WR-010

Specifications

  • Related Part Number 1: 41940
  • Material: Aluminum
  • Casting Number: 95L102A1
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 3.740" 95.00MM
  • Piston Length: 85.82MM
  • Piston Skirt Clearance: 0.0036IN
  • Measure Skirt Clearance At: 0.579" from the bottom of skirt
  • Piston Pin Diameter: 1.339" 34MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Center
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.665IN
  • Recess Diameter: 2.0905IN
  • Recess Volume: 31.89
  • Compression Height: Standard
  • Compression Distance: 2.059" 52.29MM
  • Compression Ring Groove 1: 2.30MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring. Coated skirts.

224-3503WR-020

Specifications

  • Related Part Number 1: 41940
  • Material: Aluminum
  • Casting Number: 95L102A1
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 3.740" 95.00MM
  • Piston Length: 85.82MM
  • Piston Skirt Clearance: 0.0036IN
  • Measure Skirt Clearance At: 0.579" from the bottom of skirt
  • Piston Pin Diameter: 1.339" 34MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Center
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.665IN
  • Recess Diameter: 2.0905IN
  • Recess Volume: 31.89
  • Compression Height: Standard
  • Compression Distance: 2.059" 52.29MM
  • Compression Ring Groove 1: 2.30MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring. Coated skirts.

224-3503WR-030

Specifications

  • Related Part Number 1: 41940
  • Material: Aluminum
  • Casting Number: 95L102A1
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 3.740" 95.00MM
  • Piston Length: 85.82MM
  • Piston Skirt Clearance: 0.0036IN
  • Measure Skirt Clearance At: 0.579" from the bottom of skirt
  • Piston Pin Diameter: 1.339" 34MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Center
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.665IN
  • Recess Diameter: 2.0905IN
  • Recess Volume: 31.89
  • Compression Height: Standard
  • Compression Distance: 2.059" 52.29MM
  • Compression Ring Groove 1: 2.30MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring. Coated skirts.

224-3503WR-040

Specifications

  • Related Part Number 1: 41940
  • Material: Aluminum
  • Casting Number: 95L102A1
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 3.740" 95.00MM
  • Piston Length: 85.82MM
  • Piston Skirt Clearance: 0.0036IN
  • Measure Skirt Clearance At: 0.579" from the bottom of skirt
  • Piston Pin Diameter: 1.339" 34MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Center
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.665IN
  • Recess Diameter: 2.0905IN
  • Recess Volume: 31.89
  • Compression Height: Standard
  • Compression Distance: 2.059" 52.29MM
  • Compression Ring Groove 1: 2.30MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring. Coated skirts.

224-3852WR-STD

Specifications

  • Related Part Number 1: 41940
  • Material: Aluminum
  • Casting Number: 95L102A1
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 3.740" 95.00MM
  • Piston Length: 85.82MM
  • Piston Skirt Clearance: 0.0036IN
  • Measure Skirt Clearance At: 0.579" from the bottom of skirt
  • Piston Pin Diameter: 1.339" 34MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Center
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.665IN
  • Recess Diameter: 2.0905IN
  • Recess Volume: 31.89
  • Compression Height: Standard
  • Compression Distance: 2.059" 52.29MM
  • Compression Ring Groove 1: 2.30MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring. Coated skirts.

224-3852WR-020

Specifications

  • Related Part Number 1: 41940
  • Material: Aluminum
  • Casting Number: 95L102A1
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 3.740" 95.00MM
  • Piston Length: 85.82MM
  • Piston Skirt Clearance: 0.0036IN
  • Measure Skirt Clearance At: 0.579" from the bottom of skirt
  • Piston Pin Diameter: 1.339" 34MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Center
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.665IN
  • Recess Diameter: 2.0905IN
  • Recess Volume: 31.89
  • Compression Height: Standard
  • Compression Distance: 2.059" 52.29MM
  • Compression Ring Groove 1: 2.30MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring. Coated skirts.

224-3852WR-040

Specifications

  • Related Part Number 1: 41940
  • Material: Aluminum
  • Casting Number: 95L102A1
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 3.740" 95.00MM
  • Piston Length: 85.82MM
  • Piston Skirt Clearance: 0.0036IN
  • Measure Skirt Clearance At: 0.579" from the bottom of skirt
  • Piston Pin Diameter: 1.339" 34MM
  • Piston Pin Retention Type: Floating
  • Pin Hole Location: Center
  • Head Type Description: Flat w/ Combustion Chamber
  • Recess Depth: 0.665IN
  • Recess Diameter: 2.0905IN
  • Recess Volume: 31.89
  • Compression Height: Standard
  • Compression Distance: 2.059" 52.29MM
  • Compression Ring Groove 1: 2.30MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring. Coated skirts.

224-3666WR-STD

Specifications

  • Related Part Number 1: 14420N
  • Material: Aluminum
  • Casting Number: 104L34
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 4.110" 104.40MM
  • Piston Length: 3.789IN
  • Piston Skirt Clearance: .055IN
  • Measure Skirt Clearance At: 0.850" from the bottom of skirt
  • Piston Pin Diameter: 1.3085" 33.2MM
  • Head Type Description: Reentrant Bowl
  • Valve Reliefs: No
  • Recess Depth: 0.673IN
  • Recess Diameter: 2.260IN
  • Recess Volume: 39.59
  • Compression Height: Standard
  • Compression Distance: 2.142" 54.4MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring

224-3666WR-10

Specifications

  • Related Part Number 1: 14420N
  • Material: Aluminum
  • Casting Number: 104L34
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 4.110" 104.40MM
  • Piston Length: 3.789IN
  • Piston Skirt Clearance: .055IN
  • Measure Skirt Clearance At: 0.850" from the bottom of skirt
  • Piston Pin Diameter: 1.3085" 33.2MM
  • Head Type Description: Reentrant Bowl
  • Valve Reliefs: No
  • Recess Depth: 0.673IN
  • Recess Diameter: 2.260IN
  • Recess Volume: 39.59
  • Compression Height: Standard
  • Compression Distance: 2.142" 54.4MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring

224-3666WR-020

Specifications

  • Related Part Number 1: 14420N
  • Material: Aluminum
  • Casting Number: 104L34
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 4.110" 104.40MM
  • Piston Length: 3.789IN
  • Piston Skirt Clearance: .055IN
  • Measure Skirt Clearance At: 0.850" from the bottom of skirt
  • Piston Pin Diameter: 1.3085" 33.2MM
  • Head Type Description: Reentrant Bowl
  • Valve Reliefs: No
  • Recess Depth: 0.673IN
  • Recess Diameter: 2.260IN
  • Recess Volume: 39.59
  • Compression Height: Standard
  • Compression Distance: 2.142" 54.4MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring

224-3666WR-030

Specifications

  • Related Part Number 1: 14420N
  • Material: Aluminum
  • Casting Number: 104L34
  • Maximum Oversize: 0.040IN
  • Bore Diameter: 4.110" 104.40MM
  • Piston Length: 3.789IN
  • Piston Skirt Clearance: .055IN
  • Measure Skirt Clearance At: 0.850" from the bottom of skirt
  • Piston Pin Diameter: 1.3085" 33.2MM
  • Head Type Description: Reentrant Bowl
  • Valve Reliefs: No
  • Recess Depth: 0.673IN
  • Recess Diameter: 2.260IN
  • Recess Volume: 39.59
  • Compression Height: Standard
  • Compression Distance: 2.142" 54.4MM
  • Compression Ring Groove 1: 3.00MM
  • Compression Ring Groove 2: 2.00MM
  • Oil Ring Groove Width 1: 3.50MM
  • Note 1: Keystone top ring
More Information
Truck Applications Ford 7.3L 1994-98, Ford 7.3L 1999-03, Ford 6.0L 2003-07, Ford 6.4L 2007.5-10, Ford 6.7L 2011-2024
SKU Powerstroke Pistons With Rings
Manufacturer Mahle
Weight 20.00
Scroll To Top
